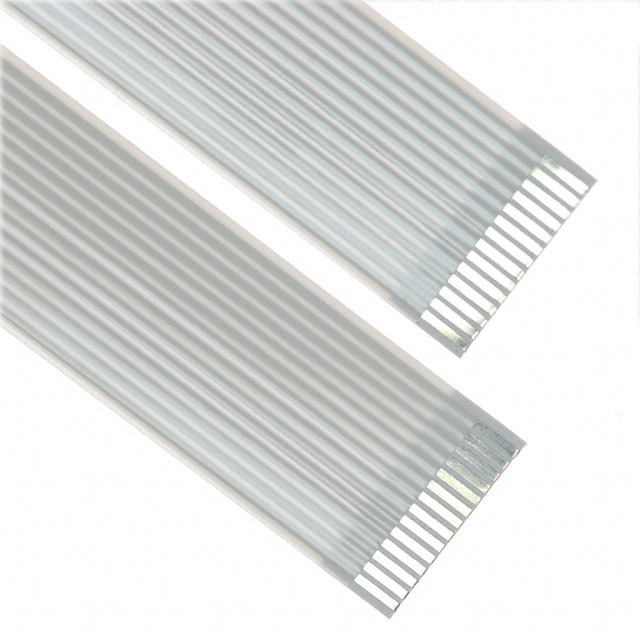

100R14-305B

Active

Parlex USA LLC

CABLE FFC/FPC 14POS 1MM 12"

Search across all available documentation for this part.

Active

Parlex USA LLC

CABLE FFC/FPC 14POS 1MM 12"

Technical Specifications

Parameters and characteristics for this part

Specification	100R14-305B

Cable Type	FPC, FFC
Length	304.8 mm
Length - Exposed Ends [x]	0.14 in
Length - Exposed Ends [x]	3.56 mm
Length [x]	12 in
Number of Conductors	14
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination Style	Backers on Both Sides, Top on Both Sides

Part	Number of Conductors	Pitch [x]	Pitch [x]	Termination Style	Length	Length [x]	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Cable Type	Length [x]	Length
Parlex USA LLC 100R14-305B	14	0.039 in	1 mm	Backers on Both Sides Top on Both Sides	304.8 mm	12 in	0.14 in	3.56 mm	FFC FPC
Parlex USA LLC 100R14-152B	14	0.039 in	1 mm	Backers on Both Sides Top on Both Sides		5.984 in	0.14 in	3.56 mm	FFC FPC	152 mm
Parlex USA LLC 100R14-127B	14	0.039 in	1 mm	Backers on Both Sides Top on Both Sides	127 mm		0.14 in	3.56 mm	FFC FPC		5 in
Parlex USA LLC 100R14-254B	14	0.039 in	1 mm	Backers on Both Sides Top on Both Sides	254 mm	10 in	0.14 in	3.56 mm	FFC FPC
Parlex USA LLC 100R14-102B	14	0.039 in	1 mm	Backers on Both Sides Top on Both Sides	101.6 mm		0.14 in	3.56 mm	FFC FPC		4 in
Parlex USA LLC 100R14-203B	14	0.039 in	1 mm	Backers on Both Sides Top on Both Sides		7.992 in	0.14 in	3.56 mm	FFC FPC	203 mm
Parlex USA LLC 100R14-635B	14	0.039 in	1 mm	Backers on Both Sides Top on Both Sides		25 "	0.14 in	3.56 mm	FFC FPC	635 mm
Parlex USA LLC 100R14-457B	14	0.039 in	1 mm	Backers on Both Sides Top on Both Sides	457.2 mm		0.14 in	3.56 mm	FFC FPC		18 "
Parlex USA LLC 100R14-51B	14	0.039 in	1 mm	Backers on Both Sides Top on Both Sides	50.8 mm		0.14 in	3.56 mm	FFC FPC		2 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Position FFC, FPC Cable 0.039" (1.00mm) 12.0" (304.8mm)
