683M5W5203L001

Active

MH Connectors

CONN D-SUB RCPT 5POS PNL MT SLDR

Search across all available documentation for this part.

Active

MH Connectors

CONN D-SUB RCPT 5POS PNL MT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	683M5W5203L001

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Coax
Dielectric Material	Polybutylene Terephthalate (PBT)
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	5
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	5W5
Shell Size, Connector Layout	3
Termination	Solder

Part	Contact Finish Thickness	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Shell Size, Connector Layout	Shell Size, Connector Layout	Connector Style	Dielectric Material	Contact Material	Number of Positions	Termination	Contact Type	Shell Material, Finish	Connector Type	Flange Feature	Material Flammability Rating	Contact Finish	Color	Features
MH Connectors 683M5W5203L001	Flash	Panel Mount Through Hole	-55 °C	125 °C	1	5W5	3	Combo D-Sub	Polybutylene Terephthalate (PBT)	Copper Alloy	5	Solder	Coax	Nickel Plated Steel	Receptacle Female Sockets	Housing/Shell (Unthreaded)	UL94 V-0	Gold	Black
MH Connectors 683M5W5103L001	Flash	Panel Mount Through Hole	-55 °C	125 °C	1	5W5	3	Combo D-Sub	Polybutylene Terephthalate (PBT)	Copper Alloy	5	Solder	Coax	Nickel Plated Steel	Male Pins Plug	Housing/Shell (Unthreaded)	UL94 V-0	Gold	Black	Grounding Indents

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

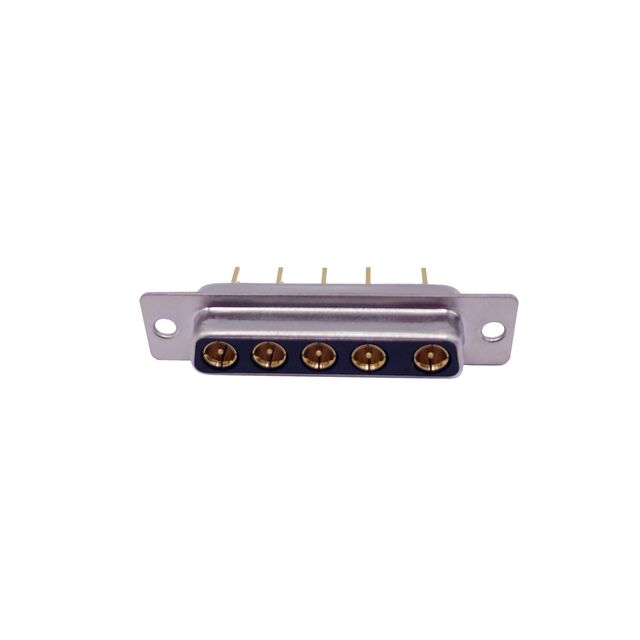

5 (Coax) Position D-Sub, Combo Receptacle, Female Sockets Connector
