E2266HS092

Unknown

Pervasive Displays

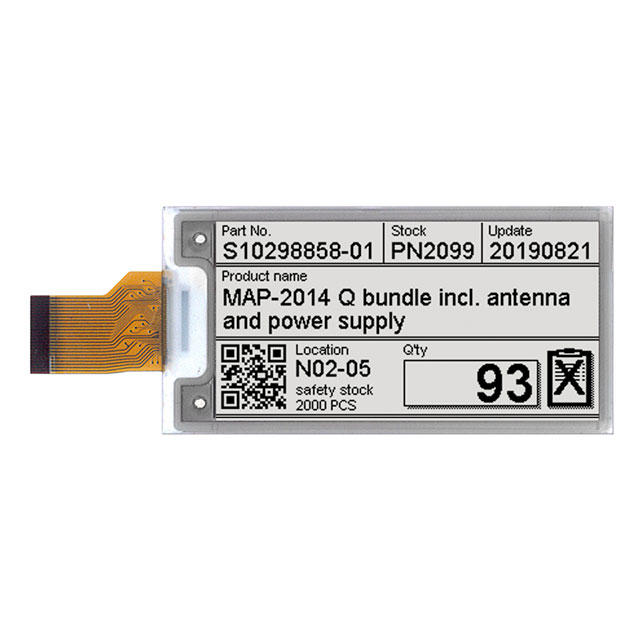

2.66" EPD, PENGUIN, W.ITC

Search across all available documentation for this part.

Unknown

Pervasive Displays

2.66" EPD, PENGUIN, W.ITC

Technical Specifications

Parameters and characteristics for this part

Specification	E2266HS092

Diagonal Screen Size	67.56 mm
Diagonal Screen Size	2.66 in
Display Type	TFT - Electronic Paper Display (EPD)
Dot Pitch [x]	0.2 mm
Dot Pitch [y]	0.2 mm
Dot Pixels [x]	296
Dot Pixels [y]	152 pixels
Graphics Color	White, Black
Interface	SPI
Viewing Area [x]	60.09 mm
Viewing Area [y]	30.7 mm

Part	Viewing Area [x]	Viewing Area [y]	Dot Pitch [x]	Dot Pitch [y]	Display Type	Diagonal Screen Size	Diagonal Screen Size	Dot Pixels [y]	Dot Pixels [x]	Graphics Color	Interface	Backlight
Pervasive Displays E2266HS092	60.09 mm	30.7 mm	0.2 mm	0.2 mm	TFT - Electronic Paper Display (EPD)	67.56 mm	2.66 in	152 pixels	296	Black White	SPI
Pervasive Displays E2266PS0C1			0.2 mm	0.2 mm	TFT - Color	68.58 mm	2.7 "	152 pixels	296	Black White	SPI	Without Backlight
Pervasive Displays E2266PS0C2			0.2 mm	0.2 mm	TFT - Color	67.56 mm	2.66 in	152 pixels	296	Black White	SPI	Without Backlight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	272	$ 7.78

General part information

Graphic LCD Display Module Black, White TFT - Electronic Paper Display (EPD) SPI 2.66" (67.56mm) 296 x 152
