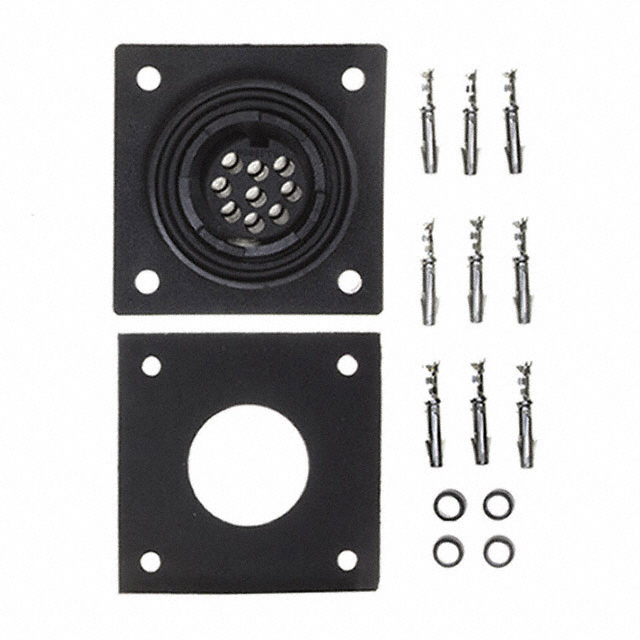

PX0769/S - PX0769/S

PX0769/S

Active
BULGIN LIMITED

CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, PANEL MOUNT RECEPTACLE, 9 CONTACTS, CRIMP SOCKET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetTechnical Data Sheet EN+1
PX0769/S - PX0769/S

PX0769/S

Active
BULGIN LIMITED

CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, PANEL MOUNT RECEPTACLE, 9 CONTACTS, CRIMP SOCKET

Deep-Dive with AI

DocumentsDatasheetTechnical Data Sheet EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationPX0769/S
ColorBlack
Connector TypeReceptacle, Female Sockets
Contact MaterialCopper Alloy
Current Rating (Amps)5 A
Ingress ProtectionIP68, IP69K
Insert MaterialNylon, Polyamide (PA)
Material Flammability RatingUL94 HB
Mounting FeatureFlange
Number of Positions9
Operating Temperature [Max]70 °C
Operating Temperature [Min]-20 C
OrientationKeyed
Primary MaterialPlastic
Shell MaterialNylon, Glass Filled, Polyamide (PA)
ShieldingUnshielded
TerminationCrimp
Voltage Rating150 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 26.99
10$ 22.94
25$ 21.50
50$ 20.48
100$ 19.50
250$ 18.28
500$ 17.41
NewarkEach 1$ 26.17
10$ 23.18
100$ 21.77
250$ 20.93
500$ 19.61
1000$ 18.44
2500$ 17.70
5000$ 17.03

Description

General part information

PX0769 Series

9 (Power) Position Circular Connector Receptacle, Female Sockets Crimp
