601XR-60BLK

Active

E-Z-Hook

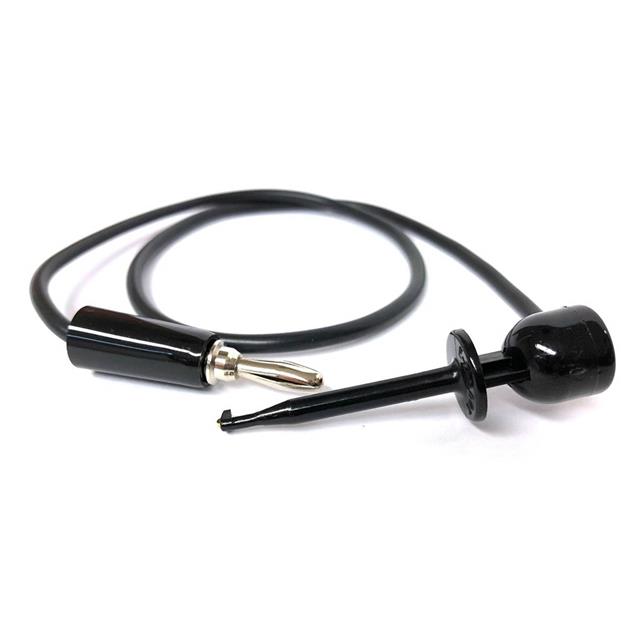

TEST LEAD BANANA TO GRABBER 60"

Search across all available documentation for this part.

Active

E-Z-Hook

TEST LEAD BANANA TO GRABBER 60"

Technical Specifications

Parameters and characteristics for this part

Specification	601XR-60BLK

1st Connector	Single, Stackable, Banana Plug
2nd Connector	Mini Hook
Cable Length	1524 mm
Cable Length	5 ft
Configuration	Banana to Grabber, Hook
Contents	1 Lead, Black
Current Rating (Amps)	4 A
Material - Insulation	Poly-Vinyl Chloride (PVC)
Stacking Method	Front Stacking
Type	Patch Cord
Voltage - Rated	5 kV
Voltage - Rated	5 kV
Wire Gauge	18 AWG

Part	Configuration	Contents	Contents	1st Connector	Wire Gauge	Stacking Method	Voltage - Rated	Voltage - Rated	Current Rating (Amps)	Cable Length	Cable Length	Type	Material - Insulation	2nd Connector	Contents [custom]
E-Z-Hook 601XR-18-S	Banana to Grabber Hook	Multiple Colors	10 Leads	Banana Plug Single Stackable	18 AWG	Front Stacking	5 kV	5 kV	4 A	457.2 mm	18 in	Patch Cord	Poly-Vinyl Chloride (PVC)	Mini Hook
E-Z-Hook 601XR-60BLK	Banana to Grabber Hook	1 Lead Black		Banana Plug Single Stackable	18 AWG	Front Stacking	5 kV	5 kV	4 A	1524 mm	5 ft	Patch Cord	Poly-Vinyl Chloride (PVC)	Mini Hook
E-Z-Hook 601XR-36RED	Banana to Grabber Hook	Red		Banana Plug Single Stackable	18 AWG	Front Stacking	5 kV	5 kV	4 A	914.4 mm	36 in	Patch Cord	Poly-Vinyl Chloride (PVC)	Mini Hook	1
E-Z-Hook 601XR-18 RED	Banana to Grabber Hook	Red		Banana Plug Single Stackable	18 AWG	Front Stacking	5 kV	5 kV	4 A	457.2 mm	18 in	Patch Cord	Poly-Vinyl Chloride (PVC)	Mini Hook	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

60.0" (1524.00mm) Banana Plug, Single, Stackable To Mini Hook Patch Cord 5000V (5kV)
