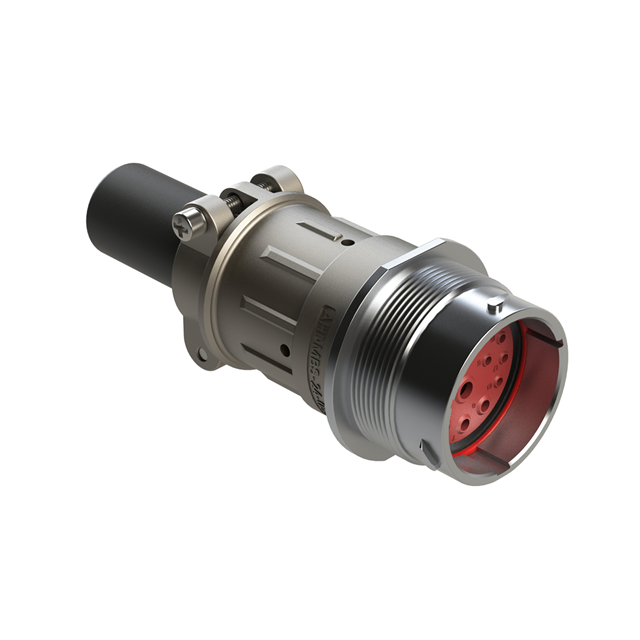

AHDM04-24-18PR-059

Active

Amphenol Sine Systems Corp

CONN RCP HSG M 18P INLINE PNL MT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDura|Mate™ Family Brochure Datasheet

AHDM04-24-18PR-059

Active

Amphenol Sine Systems Corp

CONN RCP HSG M 18P INLINE PNL MT

Deep-Dive with AI

DocumentsDura|Mate™ Family Brochure Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AHDM04-24-18PR-059

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	12 (3), 8 (1), 16 (14)
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Cable Clamp, Backshell
Housing Color	Silver
Includes	1 Backshell, 1 Connector
Ingress Protection	IP69K, IP67
Insert Material	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Free Hanging (In-Line), Panel Mount
Note	Contacts Not Included, Jam Nut Not Included
Number of Positions	18
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert [Max]	18
Shell Size - Insert [Min]	24
Shielding	Unshielded
Type	For Male Pins

AHDM04 Series

...

Part	Number of Positions	Note	Shell Finish	Insert Material	Shielding	Contact Type	Primary Material	Shell Material	Fastening Type	Orientation	Contact Size	Contact Shape	Mounting Feature	Ingress Protection	Housing Color	Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Mounting Type	Includes	Features	Contact Size	Contact Size	Shell Size - Insert [Min] [diameter]	Shell Size - Insert [Max] [diameter]
Amphenol Sine Systems Corp AHDM04-24-14PR	14	Contacts Not Included Jam Nut Not Included	Nickel	Thermoplastic	Unshielded	Crimp	Metal	Zinc Alloy	Bayonet Lock	Keyed	4 12 16	Circular	Bulkhead - Front Side Nut	IP67 IP69K	Silver	For Male Pins	Receptacle Housing	-55 °C	125 °C	24-14
Amphenol Sine Systems Corp AHDM04-24-31SR	31	Contacts Not Included Jam Nut Not Included	Nickel	Thermoplastic	Unshielded	Crimp		Zinc Alloy	Bayonet Lock	Keyed	16	Circular	Bulkhead - Front Side Nut	IP67 IP69K	Silver	For Female Sockets	Receptacle Housing	-55 °C	125 °C		31	24
Amphenol Sine Systems Corp AHDM04-24-19SR-059	19	Contacts Not Included Jam Nut Not Included	Nickel	Thermoplastic	Unshielded	Crimp		Zinc Alloy	Bayonet Lock	Keyed	12 16	Circular	Bulkhead - Front Side Nut	IP67 IP69K	Silver	For Female Sockets	Receptacle Housing	-55 °C	125 °C	24-19			Free Hanging (In-Line) Panel Mount	1 Backshell 1 Connector	Backshell Cable Clamp	6 13
Amphenol Sine Systems Corp AHDM04-18-14SN-059	14	Contacts Not Included Jam Nut Not Included	Nickel	Thermoplastic	Unshielded	Crimp		Zinc Alloy	Bayonet Lock	Keyed	16	Circular	Bulkhead - Front Side Nut	IP67 IP69K	Silver	For Female Sockets	Receptacle Housing	-55 °C	125 °C	18-14			Free Hanging (In-Line) Panel Mount	1 Backshell 1 Connector	Backshell Cable Clamp
Amphenol Sine Systems Corp AHDM04-24-07PN-CL22	7	Contacts Not Included Jam Nut Not Included	Nickel	Thermoplastic	Unshielded	Crimp		Zinc Alloy	Bayonet Lock	Keyed	4 16	Circular	Bulkhead - Front Side Nut	IP67 IP69K	Silver	For Male Pins	Receptacle Housing	-55 °C	125 °C	24-7
Amphenol Sine Systems Corp AHDM04-18-20PR	20	Contacts Not Included Jam Nut Not Included	Nickel	Thermoplastic	Unshielded	Crimp		Zinc Alloy	Bayonet Lock	Keyed		Circular	Bulkhead - Front Side Nut	IP67 IP69K	Silver	For Male Pins	Receptacle Housing	-55 °C	125 °C		20	18					16 (2) 20 (18)
Amphenol Sine Systems Corp AHDM04-24-29SR-059	29	Contacts Not Included Jam Nut Not Included	Nickel	Thermoplastic	Unshielded	Crimp		Zinc Alloy	Bayonet Lock	Keyed	12 16 20	Circular	Bulkhead - Front Side Nut	IP67 IP69K	Silver	For Female Sockets	Receptacle Housing	-55 °C	125 °C				Free Hanging (In-Line) Panel Mount	1 Backshell 1 Connector	Backshell Cable Clamp			24	29
Amphenol Sine Systems Corp AHDM04-24-18PR-059	18	Contacts Not Included Jam Nut Not Included	Nickel	Thermoplastic	Unshielded	Crimp		Zinc Alloy	Bayonet Lock	Keyed		Circular	Bulkhead - Front Side Nut	IP67 IP69K	Silver	For Male Pins	Receptacle Housing	-55 °C	125 °C		18	24	Free Hanging (In-Line) Panel Mount	1 Backshell 1 Connector	Backshell Cable Clamp		12 (3) 16 (14) 8 (1)
Amphenol Sine Systems Corp AHDM04-18-14PN	14	Contacts Not Included Jam Nut Not Included	Nickel	Thermoplastic	Unshielded	Crimp		Zinc Alloy	Bayonet Lock	Keyed	16	Circular	Bulkhead - Front Side Nut	IP67 IP69K	Silver	For Male Pins	Receptacle Housing	-55 °C	125 °C	18-14
Amphenol Sine Systems Corp AHDM04-24-14PN-059	14	Contacts Not Included Jam Nut Not Included	Anodized	Thermoplastic	Unshielded	Crimp	Metal	Aluminum Alloy	Bayonet Lock	Keyed	4 12 16	Circular	Bulkhead - Front Side Nut	IP68 IP69K	Silver	For Male Pins	Receptacle Housing	-55 °C	125 °C	24-14			Free Hanging (In-Line) Panel Mount	1 Backshell 1 Connector	Backshell Cable Clamp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 13.75
		10	$ 11.91
		25	$ 11.52

Description

General part information

AHDM04 Series

18 Position Circular Connector Receptacle Housing Free Hanging (In-Line); Panel Mount Backshell, Cable Clamp

Documents

Technical documentation and resources

Dura|Mate™ Family Brochure

Datasheet
