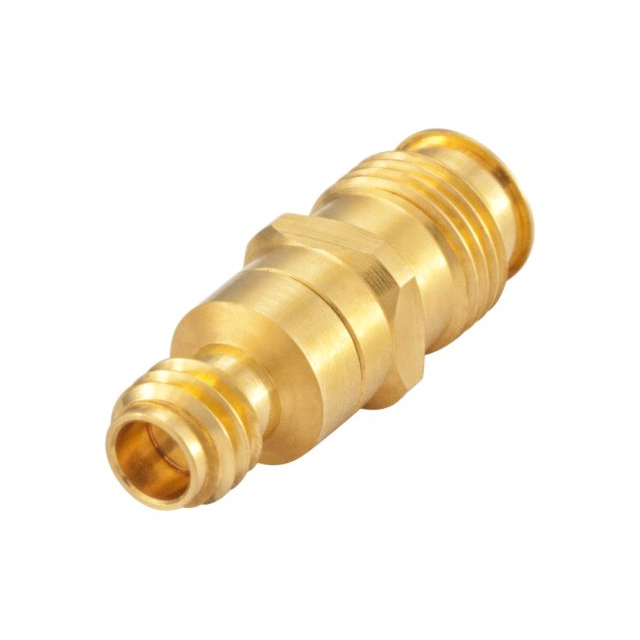

P9K101-K00D3
ActiveRosenberger
CONN ADAPT F-F RPC-1.35/FPC-1.00
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
P9K101-K00D3
ActiveRosenberger
CONN ADAPT F-F RPC-1.35/FPC-1.00
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | P9K101-K00D3 |
|---|---|
| Adapter Series [Max] | RPC-1.35 |
| Adapter Series [Min] | RPC-1.00 |
| Adapter Type | Jack to Jack |
| Body Finish | Gold |
| Body Material | Beryllium Copper |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | 1.35mm Jack, Female Socket |
| Convert To (Adapter End) | Female Socket, 1.0mm Jack |
| Dielectric Material | Polyetheretherketone (PEEK) |
| Frequency - Max [Max] | 90 GHz |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2576.70 | |
Description
General part information
P9K101 Series
Adapter Coaxial Connector 1.35mm Jack, Female Socket To 1.0mm Jack, Female Socket
