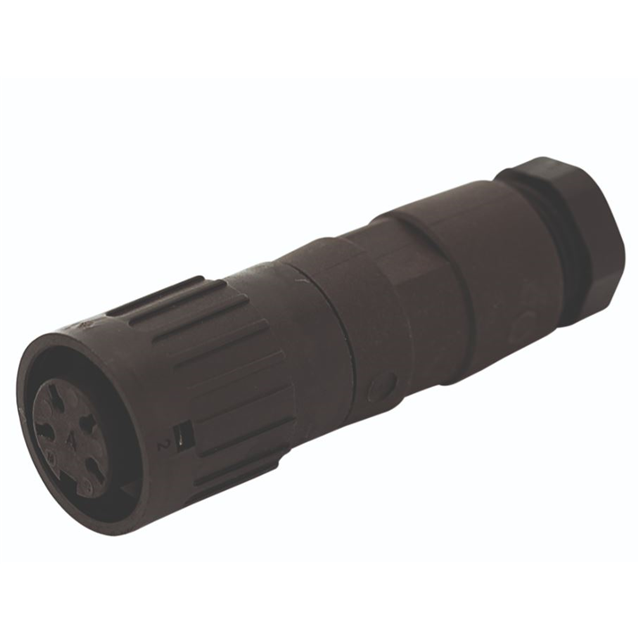

T 3645 502
ActiveAmphenol Tuchel Industrial
CONN PLUG FMALE 14P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
T 3645 502
ActiveAmphenol Tuchel Industrial
CONN PLUG FMALE 14P SOLDER CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T 3645 502 |
|---|---|
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Silver |
| Current Rating (Amps) | 3 A |
| Fastening Type | Bayonet Lock |
| Features | Cable Clamp, Strain Relief |
| Ingress Protection | IP40 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 14 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Plastic |
| Shell Size - Insert | M16-14 |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 17.35 | |
Description
General part information
T 3645 Series
14 Position Circular Connector Plug, Female Sockets Solder Cup
