345-052-555-207

Active

EDAC Inc.

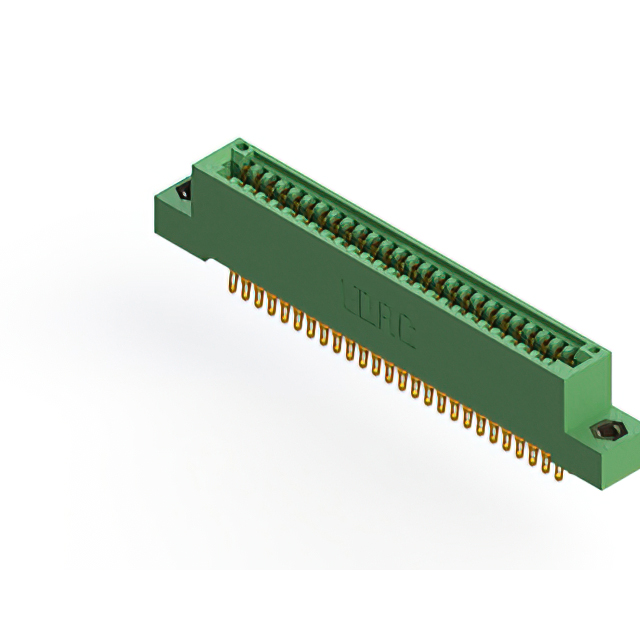

2.54MM CLAMP BOARD 52P -40℃~+105℃ P=2.54MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

345-052-555-207

Active

EDAC Inc.

2.54MM CLAMP BOARD 52P -40℃~+105℃ P=2.54MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	345-052-555-207

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Board Edge, Straddle Mount
Number of Positions	52
Number of Positions/Bay/Row [custom]	26
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

345-052 Series

...

Part	Gender	Card Type	Features	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Material - Insulation	Number of Rows	Termination	Color	Number of Positions/Bay/Row [custom]	Contact Finish	Termination Rows	Contact Material	Read Out	Contact Type	Flange Feature	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 345-052-555-207	Female	Non Specified - Dual Edge	Card Extender	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	2	Solder Eyelet(s)	Green	26	Gold	2	Copper Alloy	Dual	Cantilever	Flush Mount M3 Threaded Insert Top Opening	52	-40 °C	105 ░C	Board Edge Straddle Mount	10 Áin	0.25 Ám	2.54 mm	0.1 in
EDAC Inc. 345-052-523-804	Female	Non Specified - Dual Edge		1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	2	Solder	Green	26	Gold	2	Copper Alloy	Dual	Cantilever	Top Mount Opening Unthreaded	52	-40 °C	105 ░C	Through Hole	10 Áin	0.25 Ám	2.54 mm	0.1 in	0.156 in	3.96 mm
EDAC Inc. 345-052-540-488	Female	Non Specified - Single Edge	Card Guides	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	1	Wire Wrap	Green	52	Gold	1	Copper Alloy	Single	Cantilever	4-40 Threaded Insert Top Mount Opening	52	-40 °C	105 ░C	Through Hole	10 Áin	0.25 Ám	2.54 mm	0.1 in
EDAC Inc. 345-052-559-158	Female	Non Specified - Single Edge	Card Guides	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	1	Wire Wrap	Green	52	Gold	1	Copper Alloy	Single	Cantilever	4-40 Flush Mount Threaded Insert Top Opening	52	-40 °C	105 ░C	Through Hole Right Angle	10 Áin	0.25 Ám	2.54 mm	0.1 in
EDAC Inc. 345-052-524-408	Female	Non Specified - Single Edge		1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	1	Solder	Green	52	Gold	1	Copper Alloy	Single	Cantilever	4-40 Threaded Insert Top Mount Opening	52	-40 °C	105 ░C	Through Hole	10 Áin	0.25 Ám	2.54 mm	0.1 in
EDAC Inc. 345-052-560-288	Female	Non Specified - Dual Edge		1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	2	Solder	Green	26	Gold	2	Copper Alloy	Dual	Cantilever	4-40 Flush Mount Threaded Insert Top Opening	52	-40 °C	105 ░C	Board Edge Straddle Mount	10 Áin	0.25 Ám	2.54 mm	0.1 in
EDAC Inc. 345-052-542-807	Female	Non Specified - Dual Edge		1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	2	Wire Wrap	Green	26	Gold	2	Copper Alloy	Dual	Cantilever	M3 Threaded Insert Top Mount Opening	52	-40 °C	105 ░C	Through Hole	10 Áin	0.25 Ám	2.54 mm	0.1 in
EDAC Inc. 345-052-523-604	Female	Non Specified - Single Edge		1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	1	Solder	Green	52	Gold	1	Copper Alloy	Single	Cantilever	Top Mount Opening Unthreaded	52	-40 °C	105 ░C	Through Hole	10 Áin	0.25 Ám	2.54 mm	0.1 in	0.156 in	3.96 mm
EDAC Inc. 345-052-558-288	Female	Non Specified - Dual Edge	Card Guides	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	2	Solder	Green	26	Gold	2	Copper Alloy	Dual	Cantilever	4-40 Flush Mount Threaded Insert Top Opening	52	-40 °C	105 ░C	Through Hole Right Angle	10 Áin	0.25 Ám	2.54 mm	0.1 in
EDAC Inc. 345-052-559-108	Female	Non Specified - Single Edge		1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	1	Solder	Green	52	Gold	1	Copper Alloy	Single	Cantilever	4-40 Flush Mount Threaded Insert Top Opening	52	-40 °C	105 ░C	Through Hole Right Angle	10 Áin	0.25 Ám	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 15.05
LCSC	Piece	1	$ 9.75
		200	$ 3.77
		500	$ 3.64
		1000	$ 3.57

Description

General part information

345-052 Series

52 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
