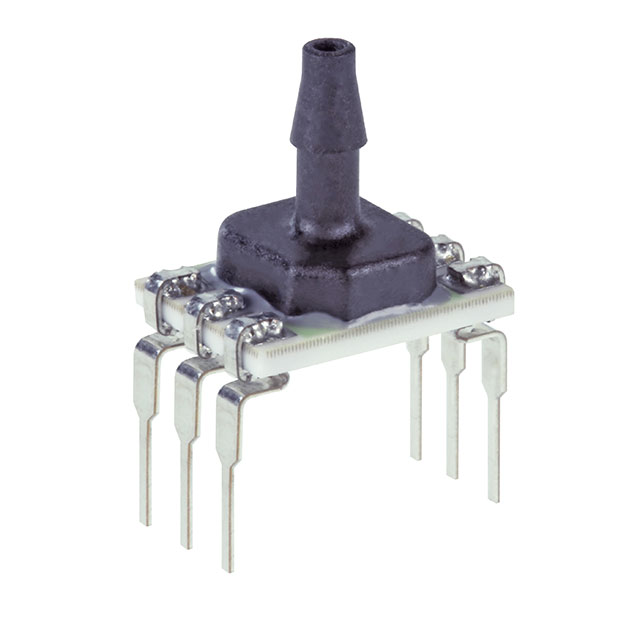

ABPDANN005PG2A3

Active

Honeywell Sensing and Productivity Solutions

SENSOR 5PSIG 0.08" 12BIT 6DIP

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SENSOR 5PSIG 0.08" 12BIT 6DIP

Technical Specifications

Parameters and characteristics for this part

Specification	ABPDANN005PG2A3

Accuracy	0.25 %
Applications	Medical Ventilation
Features	Temperature Compensated, Amplified Output
Maximum Pressure [Max]	90 PSI
Maximum Pressure [Max]	620.53 kPa
Mounting Type	Through Hole
Operating Pressure	34.47 kPa
Operating Pressure	5 PSI
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	12 b
Output Type	I2C
Package / Case	6-DIP Module
Port Size	Male
Port Size [x]	1.93 mm
Port Size [x]	0.08 "
Port Style	Barbed
Pressure Type	Vented Gauge
Supplier Device Package	6-DIP
Termination Style	PC Pin
Voltage - Supply	3.3 V

Part	Mounting Type	Termination Style	Accuracy	Operating Temperature [Max]	Operating Temperature [Min]	Output	Supplier Device Package	Voltage - Supply	Port Style	Package / Case	Features	Port Size [x]	Port Size	Port Size [x]	Operating Pressure	Operating Pressure	Applications	Maximum Pressure [Max]	Maximum Pressure [Max]	Output Type	Pressure Type
Honeywell Sensing and Productivity Solutions ABPDANN005PG2A3	Through Hole	PC Pin	0.25 %	85 °C	-40 °C	12 b	6-DIP	3.3 V	Barbed	6-DIP Module	Amplified Output Temperature Compensated	1.93 mm	Male	0.08 "	34.47 kPa	5 PSI	Medical Ventilation	90 PSI	620.53 kPa	I2C	Vented Gauge

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor 5PSI (34.47kPa) Vented Gauge Male - 0.08" (1.93mm) Tube 12 b 6-DIP Module
