SN202M

Active

Comet America, LP

PT1000TR160/M, TEMP PROBE 10 M

Search across all available documentation for this part.

Active

Comet America, LP

PT1000TR160/M, TEMP PROBE 10 M

Technical Specifications

Parameters and characteristics for this part

Specification	SN202M

Conductor Type	Non-Grounded
Diameter - Protective Tube [diameter]	5.7 mm
Element Type	Pt1000
Length - Lead Wire [x]	32.808 '
Length - Lead Wire [x]	10 m
Length - Protective Tube [x]	20 mm
Temperature Range [Max]	80 °C
Temperature Range [Min]	-40 °F
Terminal Type	Exposed Lead Wires

Part	Terminal Type	Conductor Type	Diameter - Protective Tube [diameter]	Length - Lead Wire [x]	Length - Lead Wire [x]	Element Type	Temperature Range [Max]	Temperature Range [Min]	Length - Protective Tube [x]
Comet America, LP SN202M	Exposed Lead Wires	Non-Grounded	5.7 mm	32.808 '	10 m	Pt1000	80 °C	-40 °F	20 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

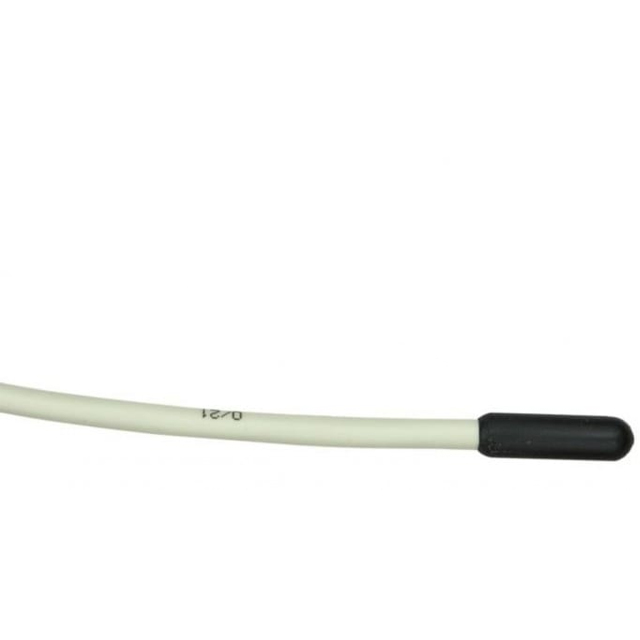

Pt1000 Temperature Sensor -40°C ~ 80°C Non-Grounded Exposed Lead Wires

Technical documentation and resources
