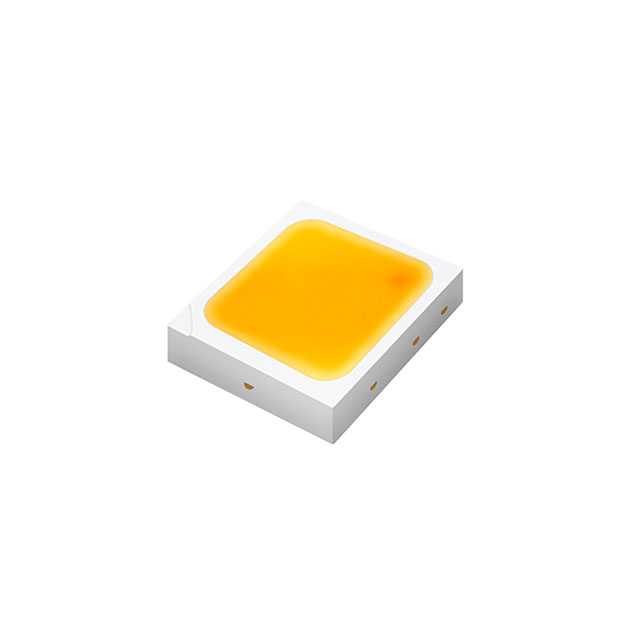

SPMWHT328FD5WATKS0

Samsung Semiconductor, Inc.

LED LM301A NEUT WHT 4000K 3030

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SPMWHT328FD5WATKS0

Samsung Semiconductor, Inc.

LED LM301A NEUT WHT 4000K 3030

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SPMWHT328FD5WATKS0

CCT (K)	4000 K
Color	Neutral, White
CRI (Color Rendering Index)	80
Current - Max [Max]	500 mA
Current - Test	150 mA
Flux @ 85°C, Current - Test	62 lm
Flux @ 85°C, Current - Test [Max]	66 lm
Flux @ 85°C, Current - Test [Min]	58 lm
Height - Seated (Max) [Max] [z]	0.03 in
Height - Seated (Max) [Max] [z]	0.75 mm
Lumens/Watt @ Current - Test	145 lm/W
Mounting Type	Surface Mount
Package / Case	1212
Package / Case	3030 Metric
Size / Dimension [x]	0.118 in
Size / Dimension [x]	3 mm
Size / Dimension [y]	3 mm
Size / Dimension [y]	0.118 in
Supplier Device Package	3030
Thermal Resistance of Package [diameter]	7 °C/W
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	2.85 V

SPMWHT328 Series

Part	Color	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Viewing Angle	Supplier Device Package	Thermal Resistance of Package [diameter]	Mounting Type	Lumens/Watt @ Current - Test	CCT (K)	CRI (Color Rendering Index)	Voltage - Forward (Vf) (Typ)	Current - Test	Flux @ 85°C, Current - Test [Max]	Flux @ 85°C, Current - Test [Min]	Flux @ 85°C, Current - Test	Package / Case	Package / Case	Current - Max [Max]	Flux @ 85°C, Current - Test [Max]	Flux @ 85°C, Current - Test [Min]
Samsung Semiconductor, Inc. SPMWHT328FD7WAW0S0	Warm White	0.118 in	3 mm	3 mm	0.118 in	0.03 in	0.75 mm	115 °	3030	7 °C/W	Surface Mount	98 lm/W	2700 K	90	2.85 V	150 mA	46 lm	38 lm	42 lm	1212	3030 Metric	500 mA
Samsung Semiconductor, Inc. SPMWHT328FD5WAR0S0	Cool White	0.118 in	3 mm	3 mm	0.118 in	0.03 in	0.75 mm	115 °	3030	7 °C/W	Surface Mount	145 lm/W	5000 K	80	2.85 V	150 mA			62 lm	1212	3030 Metric	500 mA	66 lm	58 lm
Samsung Semiconductor, Inc. SPMWHT328FD7WAVKS0	Warm White	0.118 in	3 mm	3 mm	0.118 in	0.03 in	0.75 mm	115 °	3030	7 °C/W	Surface Mount	108 lm/W		90	2.85 V	150 mA			46 lm	1212	3030 Metric	500 mA
Samsung Semiconductor, Inc. SPMWHT328FD3WARKS0	Cool White	0.118 in	3 mm	3 mm	0.118 in	0.03 in	0.75 mm	115 °	3030	7 °C/W	Surface Mount	154 lm/W	5000 K	70	2.85 V	150 mA			66 lm	1212	3030 Metric	500 mA	70 lm	62 lm
Samsung Semiconductor, Inc. SPMWHT328FD5WATKS0	Neutral White	0.118 in	3 mm	3 mm	0.118 in	0.03 in	0.75 mm	115 °	3030	7 °C/W	Surface Mount	145 lm/W	4000 K	80	2.85 V	150 mA			62 lm	1212	3030 Metric	500 mA	66 lm	58 lm
Samsung Semiconductor, Inc. SPMWHT328FD7WAR0S0	Cool White	0.118 in	3 mm	3 mm	0.118 in	0.03 in	0.75 mm	115 °	3030	7 °C/W	Surface Mount	108 lm/W	5000 K	90	2.85 V	150 mA			46 lm	1212	3030 Metric	500 mA
Samsung Semiconductor, Inc. SPMWHT328FD3WAU0S0	Warm White	0.118 in	3 mm	3 mm	0.118 in	0.03 in	0.75 mm	115 °	3030	7 °C/W	Surface Mount	145 lm/W	3500 K	70	2.85 V	150 mA			62 lm	1212	3030 Metric	500 mA	66 lm	58 lm
Samsung Semiconductor, Inc. SPMWHT328FD5WAQKS0	Cool White	0.118 in	3 mm	3 mm	0.118 in	0.03 in	0.75 mm	115 °	3030	7 °C/W	Surface Mount	145 lm/W	5700 K	80	2.85 V	150 mA			62 lm	1212	3030 Metric	500 mA	66 lm	58 lm
Samsung Semiconductor, Inc. SPMWHT328FD5WAT0S0	Neutral White	0.118 in	3 mm	3 mm	0.118 in	0.03 in	0.75 mm	115 °	3030	7 °C/W	Surface Mount	145 lm/W	4000 K	80	2.85 V	150 mA			62 lm	1212	3030 Metric	500 mA	66 lm	58 lm
Samsung Semiconductor, Inc. SPMWHT328FD5WAWMS0	Warm White	0.118 in	3 mm	3 mm	0.118 in	0.03 in	0.75 mm	115 °	3030	7 °C/W	Surface Mount	136 lm/W	2700 K	80	2.85 V	150 mA				1212	3030 Metric	500 mA	62 lm	54 lm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	40000	$ 0.07
		80000	$ 0.06
		120000	$ 0.06

Description

General part information

SPMWHT328 Series

LED Lighting LM301A White, Neutral 4000K 2.85V 150mA 115° 1212 (3030 Metric)
