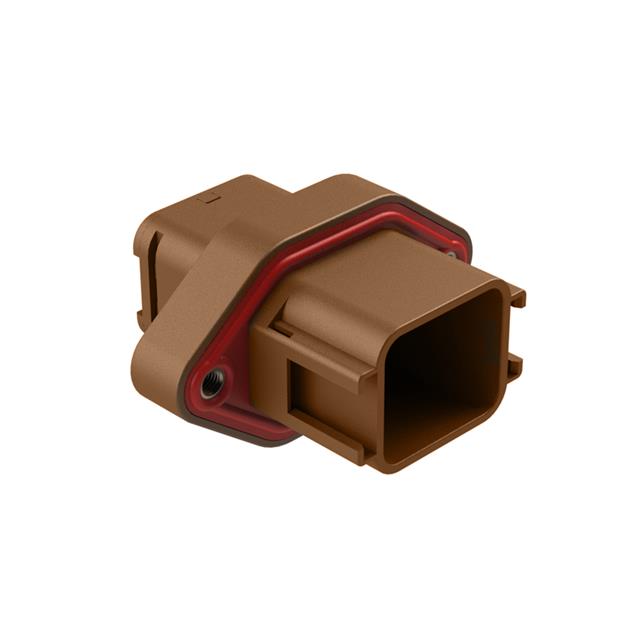

ATV02-18PD

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 18POS 14-20AWG

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 18POS 14-20AWG

Technical Specifications

Parameters and characteristics for this part

Part	Note	Color	Number of Positions	Insulation Material	Fastening Type	Contact Termination	Number of Rows	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Type
Amphenol Sine Systems Corp ATV02-18PB	Contacts Not Included	Black	18	Thermoplastic	Latch Holder	Crimp	3	Receptacle	-55 °C	125 °C	IP67 Mounting Flange Sealed	Male Pin
Amphenol Sine Systems Corp ATV02-18PC	Contacts Not Included	Green	18	Thermoplastic	Latch Holder	Crimp	3	Receptacle	-55 °C	125 °C	IP67 Mounting Flange Sealed	Male Pin
Amphenol Sine Systems Corp ATV02-18PA-RR01	Contacts Not Included	Gray	18	Thermoplastic	Latch Holder	Crimp	3	Receptacle	-55 °C	125 °C	IP67 Mounting Flange Sealed	Male Pin
Amphenol Sine Systems Corp ATV02-18PD	Contacts Not Included	Brown	18	Thermoplastic	Latch Holder	Crimp	3	Receptacle	-55 °C	125 °C	IP67 Mounting Flange Sealed	Male Pin
Amphenol Sine Systems Corp ATV02-18PD-RR01	Contacts Not Included	Brown	18	Thermoplastic	Latch Holder	Crimp	3	Receptacle	-55 °C	125 °C	IP67 Mounting Flange Sealed	Male Pin
Amphenol Sine Systems Corp ATV02-18PC-RR01	Contacts Not Included	Green	18	Thermoplastic	Latch Holder	Crimp	3	Receptacle	-55 °C	125 °C	IP67 Mounting Flange Sealed	Male Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 Rectangular Connectors - Housings Receptacle Brown

Technical documentation and resources
