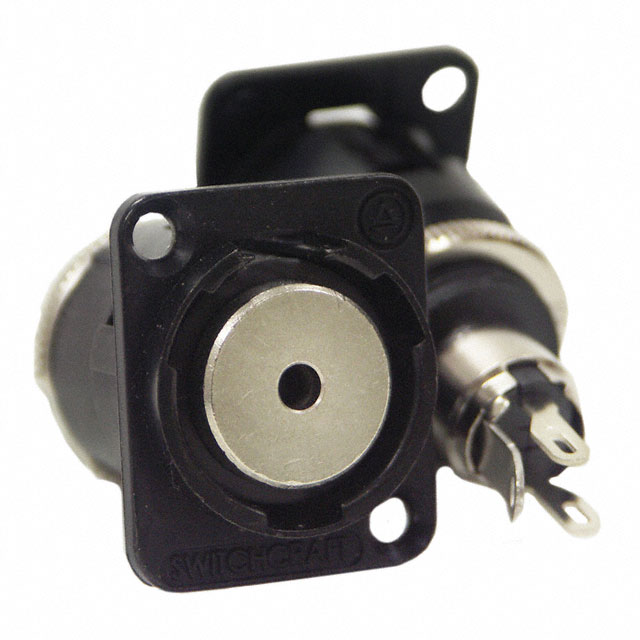

EH35MMSSCB

Active

Switchcraft Inc.

CONN JACK STEREO 3.5MM PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EH35MMSSCB

Active

Switchcraft Inc.

CONN JACK STEREO 3.5MM PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EH35MMSSCB

Actual Diameter [diameter]	0.142 in
Actual Diameter [diameter]	3.6 mm
Body Color	Silver, Black
Body Material	Zinc Alloy
Connector Type	Phone Jack
Contact Material	Copper Alloy
Contact Material - Plating [custom]	Silver
Gender	Female
Housing Material	Thermoplastic
Includes	1 Nut, 1 Connector, 1 Housing
Industry Recognized Mating Diameter	0.141 "
Industry Recognized Mating Diameter	0.125 "
Industry Recognized Mating Diameter	3.5 mm
Internal Switch(s)	False
Number of Positions/Contacts [custom]	3
Number of Positions/Contacts [custom]	3
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Panel Hole Size [diameter]	24 mm
Panel Hole Size [diameter]	0.945 in
Shielding	Unshielded
Signal Lines	Stereo

EH35MM Series

Part	Gender	Body Material	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Contact Material	Actual Diameter [diameter]	Actual Diameter [diameter]	Body Color	Contact Material - Plating [custom]	Panel Hole Size [diameter]	Panel Hole Size [diameter]	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Connector Type	Shielding	Housing Material	Includes	Operating Temperature [Min]	Operating Temperature [Max]	Signal Lines	Number of Positions/Contacts	Conversion Type	Convert From (Adapter End)	Convert From (Adapter End)	Convert From (Adapter End)	Convert From (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)	Body Finish	Features	Mounting Feature
Switchcraft Inc. EH35MMSSCB	Female	Zinc Alloy	0.141 "	0.125 "	3.5 mm	Copper Alloy	0.142 in	3.6 mm	Black Silver	Silver	24 mm	0.945 in	3	3	Phone Jack	Unshielded	Thermoplastic	1 Connector 1 Housing 1 Nut	-10 °C	60 °C	Stereo
Switchcraft Inc. EH35MM2PKG	Female to Female	Copper Alloy														Unshielded		1 Connector 2 Screws				2 Conductors	Same Series	Phone Jack Stereo	0.125 "	3.5 mm	0.141 "	Phone Jack Stereo	0.141 in	3.5 mm	Nickel	Mounting Hardware	Flange
Switchcraft Inc. EH35MMSSC	Female	Zinc Alloy	0.141 "	0.125 "	3.5 mm	Copper Alloy	0.142 in	3.6 mm	Silver	Silver	24 mm	0.945 in	3	3	Phone Jack	Unshielded	Thermoplastic	1 Connector 1 Housing 1 Nut	-10 °C	60 °C	Stereo
Switchcraft Inc. EH35MM2	Female to Female	Copper Alloy														Unshielded						2 Conductors	Same Series	Phone Jack Stereo	0.125 "	3.5 mm	0.141 "	Phone Jack Stereo	0.141 in	3.5 mm	Nickel		Flange
Switchcraft Inc. EH35MMMSCB	Female	Zinc Alloy	0.141 "	0.125 "	3.5 mm	Copper Alloy	0.142 in	3.6 mm	Black Silver	Silver	24 mm	0.945 in	2	2	Phone Jack	Unshielded	Thermoplastic	1 Connector 1 Housing 1 Nut	-10 °C	60 °C	Mono
Switchcraft Inc. EH35MM2B	Female to Female	Copper Alloy														Unshielded						2 Conductors	Same Series	Phone Jack Stereo	0.125 "	3.5 mm	0.141 "	Phone Jack Stereo	0.141 in	3.5 mm	Nickel		Flange

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.75
		10	$ 13.79
		25	$ 13.20
		50	$ 13.14

Description

General part information

EH35MM Series

3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder Cup
