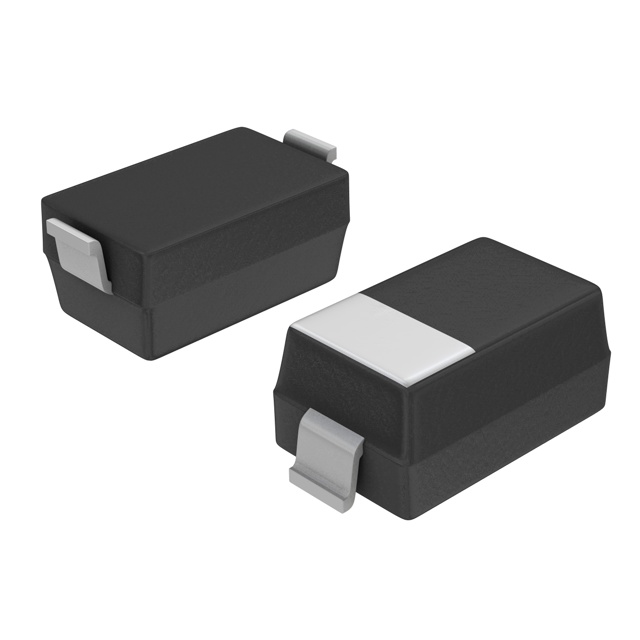

1N4148W-AU_R1_000A1

Active

Panjit International Inc.

SOD-123, SWITCHING

Search across all available documentation for this part.

Active

Panjit International Inc.

SOD-123, SWITCHING

Technical Specifications

Parameters and characteristics for this part

Specification	1N4148W-AU_R1_000A1

Capacitance @ Vr, F	1.5 pF
Current - Average Rectified (Io)	200 mA
Current - Reverse Leakage @ Vr	2.5 µA
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SOD-123
Qualification	AEC-Q101
Reverse Recovery Time (trr)	4 ns
Speed	Any Speed
Speed	200 mA
Supplier Device Package	SOD-123
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	75 V
Voltage - Forward (Vf) (Max) @ If [Max]	1.25 V

Part	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Qualification	Voltage - Forward (Vf) (Max) @ If [Max]	Current - Average Rectified (Io)	Package / Case	Technology	Reverse Recovery Time (trr)	Mounting Type	Current - Reverse Leakage @ Vr	Grade	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Speed	Speed	Capacitance @ Vr, F	Voltage - Forward (Vf) (Max) @ If
Panjit International Inc. 1N4148W-AU_R1_000A1	SOD-123	75 V	AEC-Q101	1.25 V	200 mA	SOD-123	Standard	4 ns	Surface Mount	2.5 µA	Automotive	150 °C	-55 °C	Any Speed	200 mA	1.5 pF
Panjit International Inc. 1N4448W_R1_00001	SOD-123	75 V			150 mA	SOD-123	Standard	4 ns	Surface Mount	2.5 µA		150 °C	-55 °C	Any Speed	200 mA	4 pF	1 V
Panjit International Inc. 1N4148WS_R1_00001	SOD-323	75 V		1.25 V	200 mA	SC-90 SOD-323F	Standard	4 ns	Surface Mount	2.5 µA		150 °C	-55 °C	Any Speed	200 mA	1.5 pF
Panjit International Inc. 1N4148W_R1_00001	SOD-123	75 V		1.25 V	200 mA	SOD-123	Standard	4 ns	Surface Mount	2.5 µA		150 °C	-55 °C	Any Speed	200 mA	1.5 pF
Panjit International Inc. 1N4448W-AU_R1_000A1	SOD-123	75 V	AEC-Q101		150 mA	SOD-123	Standard	4 ns	Surface Mount	2.5 µA	Automotive	150 °C	-55 °C	Any Speed	200 mA	4 pF	1 V
Panjit International Inc. 1N4148WS-AU_R1_000A1	SOD-323	75 V	AEC-Q101	1.25 V	200 mA	SC-90 SOD-323F	Standard	4 ns	Surface Mount	2.5 µA	Automotive	150 °C	-55 °C	Any Speed	200 mA	1.5 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 75 V 200mA Surface Mount SOD-123
