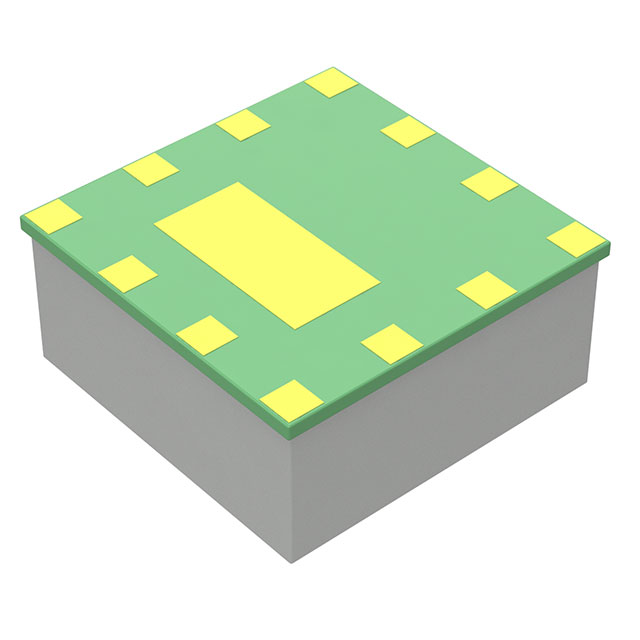

MEZDPD3603AS-84E8

Active

MONOLITHIC POWER SYSTEMS (MPS)

DC DC CONVERTER 3.3V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet mEZDPD3603A

MEZDPD3603AS-84E8

Active

MONOLITHIC POWER SYSTEMS (MPS)

DC DC CONVERTER 3.3V

Deep-Dive with AI

DocumentsDatasheet mEZDPD3603A

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MEZDPD3603AS-84E8

Applications	ITE (Commercial)
Current - Output (Max) [Max]	2 A
Efficiency	93.2 %
Features	OTP, SCP, OVP, OCP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	13-PowerBLGA Module
Size / Dimension [x]	0.59 in
Size / Dimension [x]	15 mm
Size / Dimension [y]	0.59 in
Size / Dimension [y]	15 mm
Size / Dimension [z]	6.2 mm
Size / Dimension [z]	0.24 "
Supplier Device Package	13-LGA (15x15)
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	15 V
Voltage - Input (Min) [Min]	9 V
Voltage - Output 1	3.3 V

MEZDPD3603 Series

Part	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Number of Outputs	Applications	Mounting Type	Package / Case	Voltage - Input (Min) [Min]	Type	Current - Output (Max) [Max]	Voltage - Output 1	Efficiency	Supplier Device Package
MONOLITHIC POWER SYSTEMS (MPS) MEZDPD3603A-85BA	36 V	85 °C	-40 °C	OCP OTP OVP Remote On/Off SCP	0.35 "	0.91 "	9 mm	16 mm	23 mm	0.63 in	1	ITE (Commercial)	Through Hole	12-DIP Module	4.5 V	Non-Isolated PoL Module
MONOLITHIC POWER SYSTEMS (MPS) MEZDPD3603AS-84E8	15 V	85 °C	-40 °C	OCP OTP OVP SCP	0.24 "	0.59 in	6.2 mm	15 mm	15 mm	0.59 in	1	ITE (Commercial)	Surface Mount	13-PowerBLGA Module	9 V	Non-Isolated PoL Module	2 A	3.3 V	93.2 %	13-LGA (15x15)
MONOLITHIC POWER SYSTEMS (MPS) MEZDPD3603A-84E0	28 V	85 °C	-40 °C	OCP OTP OVP Remote On/Off SCP	0.35 "	0.91 "	9 mm	16 mm	23 mm	0.63 in	1	ITE (Commercial)	Through Hole	12-DIP Module	20 V	Non-Isolated PoL Module	3 A	12 V
MONOLITHIC POWER SYSTEMS (MPS) MEZDPD3603AS-84F8	28 V	85 °C	-40 °C	OCP OTP OVP SCP	0.24 "	0.59 in	6.2 mm	15 mm	15 mm	0.59 in	1	ITE (Commercial)	Surface Mount	13-PowerBLGA Module	20 V	Non-Isolated PoL Module	1 A	12 V	93.2 %	13-LGA (15x15)
MONOLITHIC POWER SYSTEMS (MPS) MEZDPD3603A-8544	36 V	85 °C	-40 °C	OCP OTP OVP Remote On/Off SCP	0.35 "	0.91 "	9 mm	16 mm	23 mm	0.63 in	1	ITE (Commercial)	Through Hole	12-DIP Module	4.5 V	Non-Isolated PoL Module
MONOLITHIC POWER SYSTEMS (MPS) MEZDPD3603A-84EC	28 V	85 °C	-40 °C	OCP OTP OVP Remote On/Off SCP	0.35 "	0.91 "	9 mm	16 mm	23 mm	0.63 in	1	ITE (Commercial)	Through Hole	12-DIP Module	20 V	Non-Isolated PoL Module	2 A	12 V
MONOLITHIC POWER SYSTEMS (MPS) MEZDPD3603AS-84F4	15 V	85 °C	-40 °C	OCP OTP OVP SCP	0.24 "	0.59 in	6.2 mm	15 mm	15 mm	0.59 in	1	ITE (Commercial)	Surface Mount	13-PowerBLGA Module	9 V	Non-Isolated PoL Module	1 A	3.3 V	93.2 %	13-LGA (15x15)
MONOLITHIC POWER SYSTEMS (MPS) MEZDPD3603A-0001	36 V	85 °C	-40 °C	OCP OTP OVP Remote On/Off SCP	0.35 "	0.91 "	9 mm	16 mm	23 mm	0.63 in	1	ITE (Commercial)	Through Hole	12-DIP Module	4.5 V	Non-Isolated PoL Module	3 A	5 V	90 %
MONOLITHIC POWER SYSTEMS (MPS) MEZDPD3603A-85C9	36 V	85 °C	-40 °C	OCP OTP OVP Remote On/Off SCP	0.35 "	0.91 "	9 mm	16 mm	23 mm	0.63 in	1	ITE (Commercial)	Through Hole	12-DIP Module	4.5 V	Non-Isolated PoL Module
MONOLITHIC POWER SYSTEMS (MPS) MEZDPD3603AS-84D9	15 V	85 °C	-40 °C	OCP OTP OVP SCP	0.24 "	0.59 in	6.2 mm	15 mm	15 mm	0.59 in	1	ITE (Commercial)	Surface Mount	13-PowerBLGA Module	9 V	Non-Isolated PoL Module	3 A	1.2 V	93.2 %	13-LGA (15x15)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MEZDPD3603 Series

Non-Isolated PoL Module DC DC Converter 1 Output 3.3V 2A 9V - 15V Input

Documents

Technical documentation and resources

Datasheet

mEZDPD3603A

Datasheet
