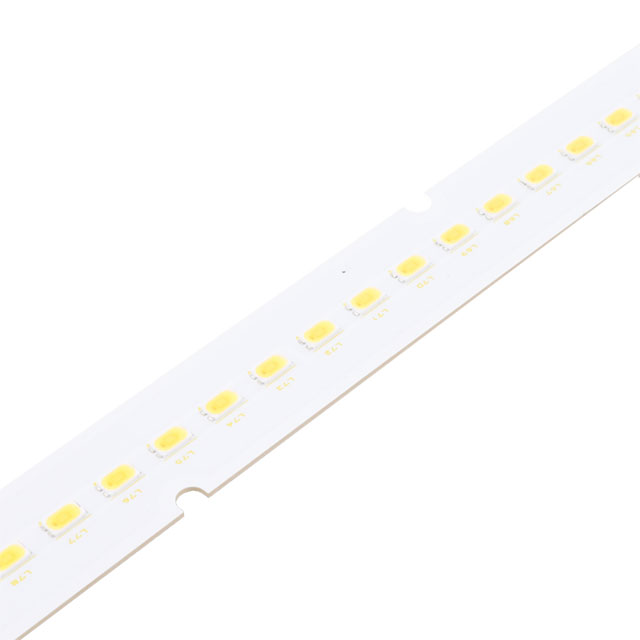

SMJD-3622120B-XXN1 00E26F038ALL

Active

Seoul Semiconductor

LED MOD HE WARM WHT RECT 3500K

Search across all available documentation for this part.

Active

Seoul Semiconductor

LED MOD HE WARM WHT RECT 3500K

Technical Specifications

Parameters and characteristics for this part

Specification	SMJD-3622120B-XXN1 00E26F038ALL

CCT (K)	3500 K
Color	White, Warm
Configuration	Rectangle
CRI (Color Rendering Index)	80
Current - Max [Max]	1.3 A
Current - Test	650 mA
Height [z]	5.5 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	195 lm/W
Luminous Flux @ Current/Temperature	4260 lm
Size / Dimension [x]	1120 mm
Size / Dimension [y]	20 mm
Type	LED Module
Voltage - Forward (Vf) (Typ)	33.6 V

Part	CCT (K)	Current - Test	Color	Current - Max [Max]	Lumens/Watt @ Current - Test	Lens Type	Configuration	Height [z]	Size / Dimension [x]	Size / Dimension [y]	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ)	Type	CRI (Color Rendering Index)
Seoul Semiconductor SMJD-3622120B-XXN1 00E26F038ALL	3500 K	650 mA	Warm White	1.3 A	195 lm/W	Flat	Rectangle	5.5 mm	1120 mm	20 mm	4260 lm	33.6 V	LED Module	80

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Module HE White, Warm Rectangle
