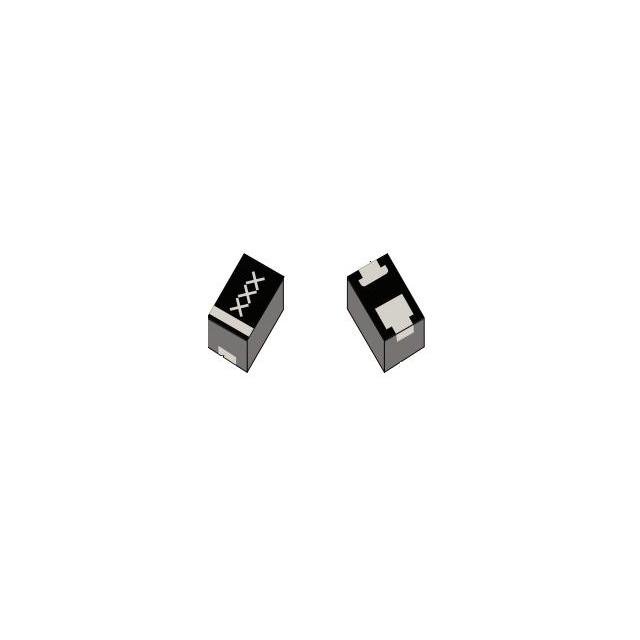

MSWSE-050-10
ActiveMACOM Technology Solutions
RF DIODE PIN 500V 50W 0805P
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MSWSE-050-10
ActiveMACOM Technology Solutions
RF DIODE PIN 500V 50W 0805P
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MSWSE-050-10 |
|---|---|
| Capacitance @ Vr, F | 0.65 pF |
| Current - Max [Max] | 500 mA |
| Diode Type | PIN - Single |
| Operating Temperature | 175 °C |
| Package / Case | 0805 |
| Power Dissipation (Max) [Max] | 50 W |
| Resistance @ If, F | 600 mOhm |
| Supplier Device Package | 0805P |
| Voltage - Peak Reverse (Max) [Max] | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 8.07 | |
| 10 | $ 6.25 | |||
| 25 | $ 5.79 | |||
| 100 | $ 5.32 | |||
| Digi-Reel® | 1 | $ 8.07 | ||
| 10 | $ 6.25 | |||
| 25 | $ 5.79 | |||
| 100 | $ 5.32 | |||
| Tape & Reel (TR) | 500 | $ 4.91 | ||
| 1000 | $ 4.79 | |||
| 1500 | $ 4.74 | |||
Description
General part information
MSWSE-050 Series
RF Diode PIN - Single 500V 500 mA 50 W 0805P
