A80804KETASR

Active

Allegro MicroSystems

FOUR-CHANNEL, AUTOMOTIVE LED CON

Search across all available documentation for this part.

Active

Allegro MicroSystems

FOUR-CHANNEL, AUTOMOTIVE LED CON

Technical Specifications

Parameters and characteristics for this part

Specification	A80804KETASR

Dimming	Analog, PWM
Grade	Automotive
Internal Switch(s)	False
Mounting Type	Wettable Flank, Surface Mount
Number of Outputs	4
Operating Temperature	150 °C

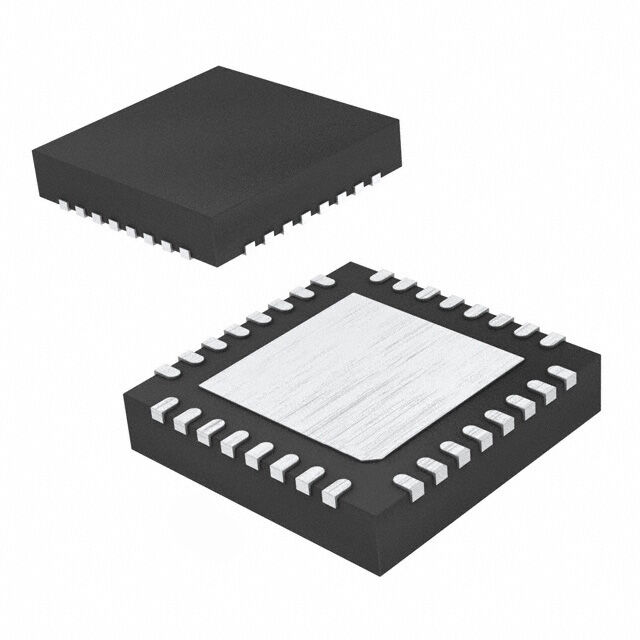

Package / Case	32-VFQFN Exposed Pad
Qualification	AEC-Q100
Supplier Device Package	32-QFN (5x5)
Type	Linear
Voltage - Supply (Max) [Max]	40 V
Voltage - Supply (Min) [Min]	5.3 V

Part	Operating Temperature	Grade	Number of Outputs	Mounting Type	Dimming	Qualification	Supplier Device Package	Package / Case	Internal Switch(s)	Voltage - Supply (Max) [Max]	Voltage - Supply (Min) [Min]	Type
Allegro MicroSystems A80804KETASR	150 °C	Automotive	4	Surface Mount Wettable Flank	Analog PWM	AEC-Q100	32-QFN (5x5)	32-VFQFN Exposed Pad		40 V	5.3 V	Linear

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	18000	$ 1.29

General part information

LED Driver IC 4 Output Linear Analog, PWM Dimming 32-QFN (5x5)
