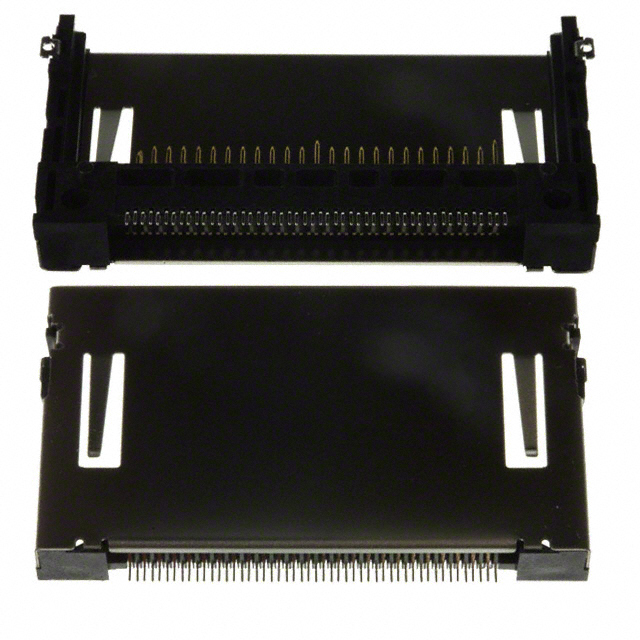

101-00265-64
ActiveAmphenol ICC (Commercial Products)
CONN COMPACT FLASH CARD R/A SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
101-00265-64
ActiveAmphenol ICC (Commercial Products)
CONN COMPACT FLASH CARD R/A SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 101-00265-64 |
|---|---|
| Card Type | CompactFlash® |
| Contact Finish | Gold |
| Features | Board Guide |
| Height Above Board [z] | 0.24 " |
| Height Above Board [z] | 6.1 mm |
| Insertion, Removal Method | Pull Out, Push In |
| Mounting Feature | Reverse - Bottom |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 50 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
101-00265 Series
50 Position Card Connector CompactFlash® Surface Mount, Right Angle Gold
