109R0624M401

Active

Sanyo Denki America Inc.

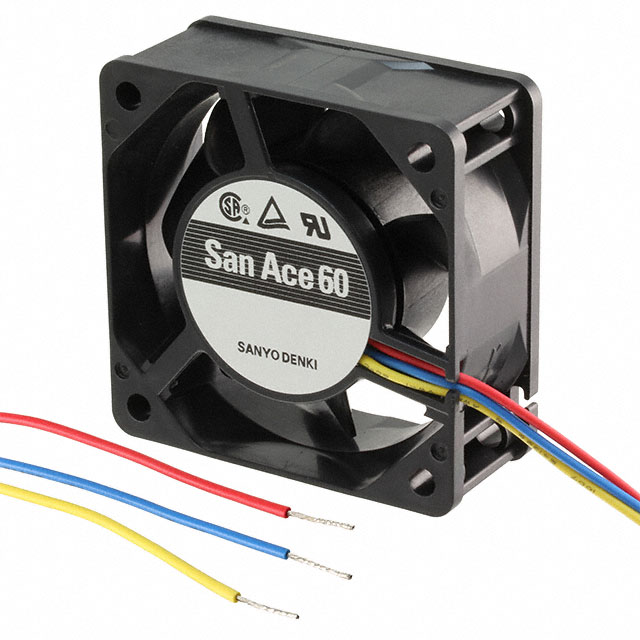

FAN AXIAL 60X25MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsNumbering System DC Fan Handling Instructions for Fan Motors +1

109R0624M401

Active

Sanyo Denki America Inc.

FAN AXIAL 60X25MM 24VDC WIRE

Deep-Dive with AI

DocumentsNumbering System DC Fan Handling Instructions for Fan Motors +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	109R0624M401

Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	40 mA
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Material - Blade	Plastic
Material - Frame	Plastic
Noise	20 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
RPM	2600 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	0.079 in H2O
Static Pressure	19.6 Pa
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	27.6 VDC
Voltage Range [Min]	14 VDC
Weight	90.26 g
Weight	0.199 lb
Width [y]	25 mm

109R0624 Series

Part	Noise	Fan Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Width [y]	Material - Blade	Power (Watts)	Lifetime @ Temp.	Voltage - Rated	Static Pressure	Static Pressure	Approval Agency	Weight	Weight	Air Flow	Air Flow	Material - Frame	Bearing Type	RPM	Termination	Size / Dimension [x]	Size / Dimension [y]	Features	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)
Sanyo Denki America Inc. 109R0624G402	39 dB(A)	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	25 mm	Plastic	3.12 W	40000 Hrs	24 VDC	0.351 in H2O	87.3 Pa	CSA TUV UL	90.26 g	0.199 lb	27.5 CFM	0.77 m³/min	Plastic	Ball	5600 RPM	2 Wire Leads	60 mm	60 mm
Sanyo Denki America Inc. 109R0624G4D011	39 dB(A)	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	25 mm	Plastic	3.12 W	40000 Hrs	24 VDC	0.351 in H2O	87.3 Pa	CSA TUV UL	90.26 g	0.199 lb	27.5 CFM	0.77 m³/min	Plastic	Ball	5600 RPM	3 Wire Leads	60 mm	60 mm	Locked Rotor Sensor
Sanyo Denki America Inc. 109R0624M401	20 dB	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	25 mm	Plastic			24 VDC	0.079 in H2O	19.6 Pa	CSA TUV UL	90.26 g	0.199 lb			Plastic	Ball	2600 RPM	3 Wire Leads	60 mm	60 mm	Locked Rotor Protection Speed Sensor (Tach)	27.6 VDC	14 VDC	40 mA
Sanyo Denki America Inc. 109R0624M4021	20 dB	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	25 mm	Plastic			24 VDC	0.079 in H2O	19.6 Pa	CSA TUV UL	90.26 g	0.199 lb			Plastic	Ball	2600 RPM	2 Wire Leads	60 mm	60 mm		27.6 VDC	14 VDC	40 mA
Sanyo Denki America Inc. 109R0624J402	44 dB	Tubeaxial	-20 °C	60 °C	-20 C	60 °C	25 mm	Plastic		40000 Hrs	24 VDC	0.622 in H2O	155 Pa	CSA TUV UL	90.26 g	0.199 lb	37.1 CFM	1.04 mł/min	Plastic	Ball	7600 RPM	2 Wire Leads	60 mm	60 mm		26.4 VDC	21.6 VDC	0.24 A
Sanyo Denki America Inc. 109R0624H4011	28 dB	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	25 mm	Plastic	1.44 W		24 VDC			CSA TUV UL	90.26 g	0.199 lb	18.7 CFM	0.524 mł/min	Plastic	Ball	3800 RPM	3 Wire Leads	60 mm	60 mm	Locked Rotor Protection Speed Sensor (Tach)	27.6 VDC	12 VDC	60 mA
Sanyo Denki America Inc. 109R0624S4D01	33 dB(A)	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	25 mm	Plastic	1.92 W		24 VDC	0.228 in H2O	56.8 Pa	CSA TUV UL	90.26 g	0.199 lb	23 CFM	0.644 m³/min	Plastic	Ball	4600 RPM	3 Wire Leads	60 mm	60 mm	Locked Rotor Sensor	27.6 VDC	12 VDC
Sanyo Denki America Inc. 109R0624H401	28 dB	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	25 mm	Plastic	1.44 W		24 VDC			CSA TUV UL	90.26 g	0.199 lb	18.7 CFM	0.524 mł/min	Plastic	Ball	3800 RPM	3 Wire Leads	60 mm	60 mm	Locked Rotor Protection Speed Sensor (Tach)	27.6 VDC	12 VDC	60 mA
Sanyo Denki America Inc. 109R0624M4011	20 dB	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	25 mm	Plastic			24 VDC	0.079 in H2O	19.6 Pa	CSA TUV UL	90.26 g	0.199 lb			Plastic	Ball	2600 RPM	3 Wire Leads	60 mm	60 mm	Locked Rotor Protection Speed Sensor (Tach)	27.6 VDC	14 VDC	40 mA
Sanyo Denki America Inc. 109R0624G401	39 dB(A)	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	25 mm	Plastic	3.12 W	40000 Hrs	24 VDC	0.351 in H2O	87.3 Pa	CSA TUV UL	90.26 g	0.199 lb	27.5 CFM	0.77 m³/min	Plastic	Ball	5600 RPM	3 Wire Leads	60 mm	60 mm	Locked Rotor Protection Speed Sensor (Tach)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 15.81
		10	$ 14.10
		25	$ 13.47
		50	$ 13.01
		100	$ 12.57
		250	$ 12.01
		500	$ 11.60

Description

General part information

109R0624 Series

Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 12.7 CFM (0.356m³/min) 3 Wire Leads
