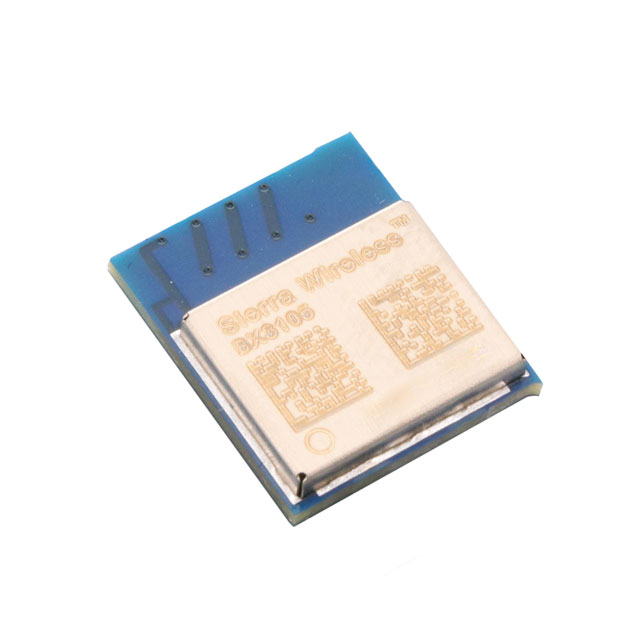

1104231 BX3105
ObsoleteSemtech Corporation
RF TXRX MOD BT WIFI TH SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1104231 BX3105
ObsoleteSemtech Corporation
RF TXRX MOD BT WIFI TH SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1104231 BX3105 |
|---|---|
| Antenna Type | Integrated, Trace |
| Current - Receiving | 85 mA |
| Current - Transmitting | 225 mA |
| Data Rate | 150 Mbps |
| Frequency [Max] | 2.485 GHz |
| Frequency [Min] | 2.4 GHz |
| Modulation | DSSS, CCK, OFDM |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Output | 18 dBm |
| Protocol | 802.11b/g/n, Bluetooth 4.2 |
| RF Family/Standard | WiFi, Bluetooth |
| Sensitivity | -98 dBm |
| Serial Interfaces | UART, I2S, I2C, SPI, PWM |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1104231 Series
Bluetooth, WiFi 802.11b/g/n, Bluetooth 4.2 Transceiver Module 2.4GHz ~ 2.485GHz Integrated, Trace Surface Mount
