BJ770

Active

Cinch Connectivity Solutions Trompeter

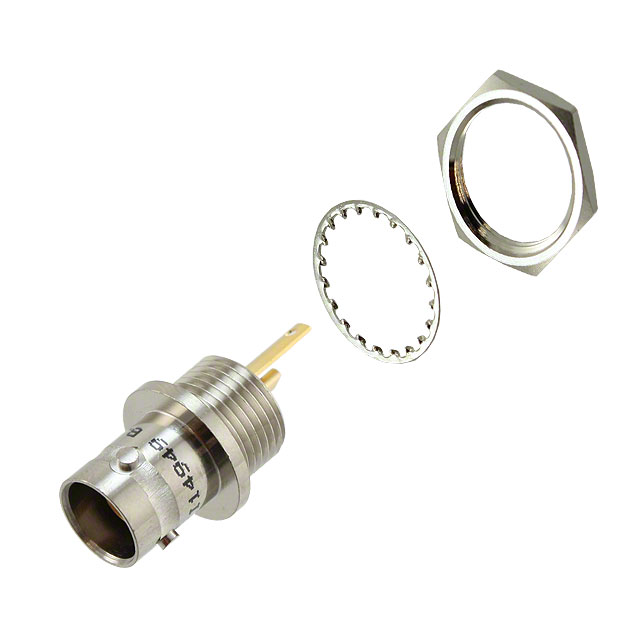

CONN TRB JACK STR SOLDER

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN TRB JACK STR SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	BJ770

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	Twinaxial/Triaxial, TRB
Connector Type	Female Socket (Concentric), Jack
Contact Termination	Solder Cup
Fastening Type	Bayonet Lock
Features	Three Lug, Extended Insulation
Frequency - Max [Max]	500 MHz
Housing Color	Silver
Impedance	Non-Constant
Includes	Connector, Washer, Nut
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder Tag
Voltage Rating	400 V

Part	Housing Color	Connector Style	Mating Cycles	Mounting Feature	Fastening Type	Body Finish	Frequency - Max [Max]	Center Contact Plating	Contact Termination	Number of Ports	Voltage Rating	Connector Type	Impedance	Includes	Center Contact Material	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Features
Cinch Connectivity Solutions Trompeter BJ770	Silver	TRB Twinaxial/Triaxial	500	Bulkhead - Rear Side Nut	Bayonet Lock	Nickel	500 MHz	Gold	Solder Cup	1	400 V	Female Socket (Concentric) Jack	Non-Constant	Connector Nut Washer	Beryllium Copper	Solder Tag	-65 ░C	165 °C	Brass	Extended Insulation Three Lug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TRB, Twinaxial/Triaxial Connector Jack, Female Socket (Concentric) Non-Constant Panel Mount Solder Cup
