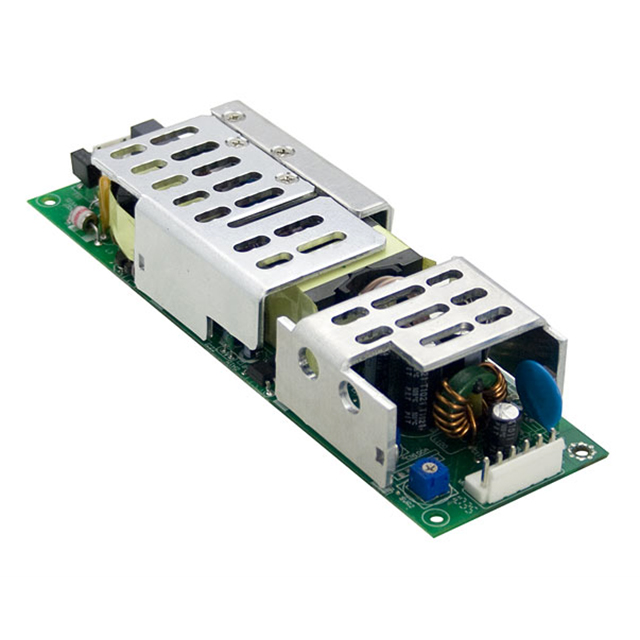

HLP-80H-48
NRNDMEAN WELL USA Inc.
LED DRVR CC AC/DC 28.8-48V 1.7A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HLP-80H-48
NRNDMEAN WELL USA Inc.
LED DRVR CC AC/DC 28.8-48V 1.7A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HLP-80H-48 |
|---|---|
| Approval Agency | CE, TUV, CB, CCC, UR |
| Current - Output (Max) [Max] | 1.7 A |
| Dimming | Analog, PWM |
| Efficiency | 90 % |
| Features | OTP, SCP, OVP, OCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 82 W |
| Size / Dimension [x] | 167 mm |
| Size / Dimension [x] | 6.57 " |
| Size / Dimension [y] | 53 mm |
| Size / Dimension [y] | 2.09 " |
| Size / Dimension [z] | 29.5 mm |
| Size / Dimension [z] | 1.16 " |
| Termination Style | Rectangular, 6 Position |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 305 VAC |
| Voltage - Input (Min) [Min] | 90 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output [Max] | 48 V |
| Voltage - Output [Min] | 28.8 V |
HLP-80H Series
| Part | Voltage - Input (Max) [Max] | Mounting Type | Topology | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Number of Outputs | Features | Efficiency | Type | Dimming | Power (Watts) | Voltage - Isolation | Voltage - Input (Min) [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Output [Min] | Voltage - Output [Max] | Approval Agency | Termination Style | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MEAN WELL USA Inc. | 305 VAC | Chassis Mount | AC DC Converter | 167 mm | 53 mm | 6.57 " | 29.5 mm | 2.09 " | 1.16 " | 1 | OCP OTP OVP SCP | 90 % | Constant Current | Analog PWM | 82 W | 3750 V | 90 VAC | -40 °C | 70 °C | 28.8 V | 48 V | CB CCC CE TUV UR | Rectangular 6 Position | 1.7 A |
MEAN WELL USA Inc. | 305 VAC | Chassis Mount | AC DC Converter | 167 mm | 53 mm | 6.57 " | 29.5 mm | 2.09 " | 1.16 " | 1 | OCP OTP OVP SCP | 90 % | Constant Current | Analog PWM | 81 W | 3750 V | 90 VAC | -40 °C | 70 °C | 32.4 V | 54 V | CB CCC CE TUV UR | Rectangular 6 Position | 1.5 A |
MEAN WELL USA Inc. | 305 VAC | Chassis Mount | AC DC Converter | 167 mm | 53 mm | 6.57 " | 29.5 mm | 2.09 " | 1.16 " | 1 | OCP OTP OVP SCP | Constant Current | Analog PWM | 80 W | 3750 V | 90 VAC | -40 °C | 70 °C | 12 V | 20 V | CB CCC CE cURus TUV | Rectangular 6 Position | 4 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 48.39 | |
| 36 | $ 39.89 | |||
Description
General part information
HLP-80H Series
1.7A 28.8 ~ 48V Constant Current LED Driver AC DC Converter Topology 1 Output
Documents
Technical documentation and resources
