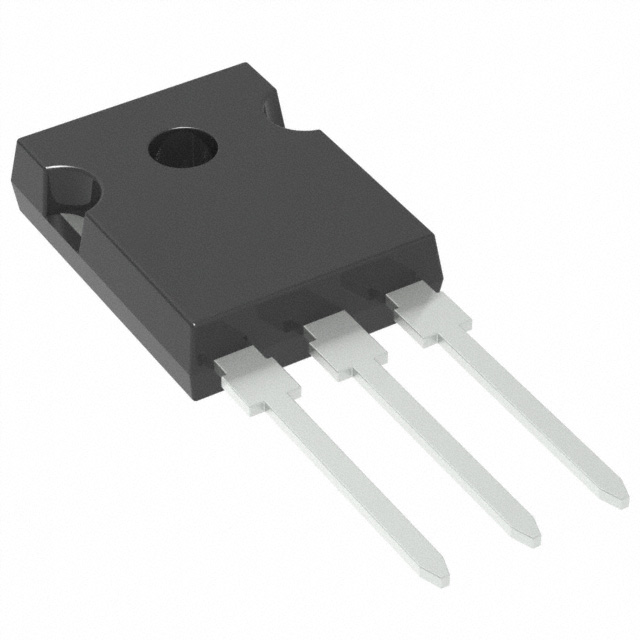

SBM3060VPT_T0_00001

Active

Panjit International Inc.

SCHOTTKY BARRIER RECTIFIER

Search across all available documentation for this part.

Active

Panjit International Inc.

SCHOTTKY BARRIER RECTIFIER

Technical Specifications

Parameters and characteristics for this part

Specification	SBM3060VPT_T0_00001

Current - Average Rectified (Io) (per Diode)	15 A
Current - Reverse Leakage @ Vr	220 µA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	TO-247-3
Speed	200 mA, 500 ns
Supplier Device Package	TO-247AD (TO-3P)
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	60 V
Voltage - Forward (Vf) (Max) @ If [Max]	590 mV

Part	Voltage - Forward (Vf) (Max) @ If [Max]	Package / Case	Technology	Current - Reverse Leakage @ Vr	Mounting Type	Diode Configuration	Speed	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io) (per Diode)	Voltage - DC Reverse (Vr) (Max) [Max]
Panjit International Inc. SBM3060VPT_T0_00001	590 mV	TO-247-3	Schottky	220 µA	Through Hole	1 Pair Common Cathode	200 mA 500 ns	TO-247AD (TO-3P)	150 °C	-55 °C	15 A	60 V
Panjit International Inc. SBM3060VDC_R2_00001	590 mV	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Schottky	220 µA	Surface Mount	1 Pair Common Cathode	200 mA 500 ns	TO-263	150 °C	-55 °C	15 A	60 V
Panjit International Inc. SBM3060VFCT_T0_00001	590 mV	TO-220-3 Full Pack	Schottky	220 µA	Through Hole	1 Pair Common Cathode	200 mA 500 ns	ITO-220AB	150 °C	-55 °C	15 A	60 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	58500	$ 0.83

General part information

Diode Array 1 Pair Common Cathode 60 V 15A Through Hole TO-247-3
