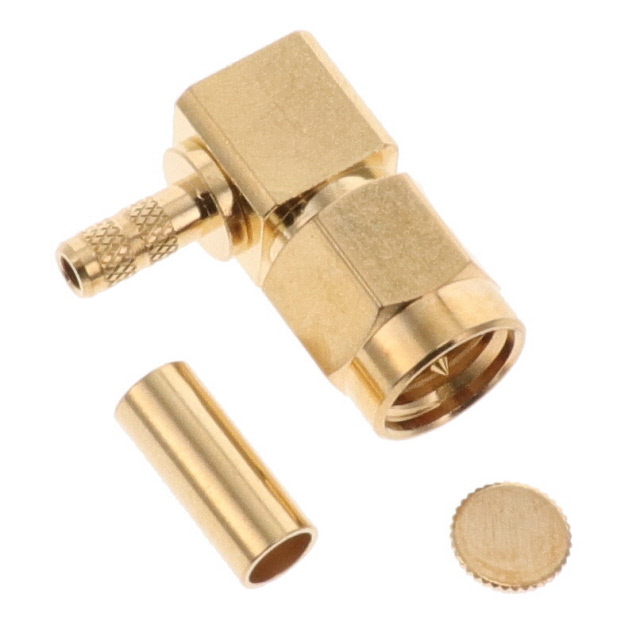

RF2-01A-02-50-G

Active

Adam Tech

RF SMA CONNECTOR

Search across all available documentation for this part.

Active

Adam Tech

RF SMA CONNECTOR

Technical Specifications

Parameters and characteristics for this part

Specification	RF2-01A-02-50-G

Body Finish	Gold
Body Material	Brass
Cable Group	RG-174, LMR-100, 316
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Code A
Frequency - Max [Max]	6000 MHz
Housing Color	White
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	250 VDC

Part	Impedance	Body Finish	Center Contact Plating	Connector Style	Cable Group	Shield Termination	Center Contact Material	Body Material	Voltage Rating	Housing Color	Number of Ports	Mounting Type	Contact Termination	Features	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Connector Type	Frequency - Max [Max]
Adam Tech RF2-01A-02-50-G	50 Ohms	Gold	Gold	SMA	316 LMR-100 RG-174	Crimp	Brass	Brass	250 VDC	White	1	Free Hanging (In-Line) Right Angle	Crimp	Code A	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Male Pin Plug	6000 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp
