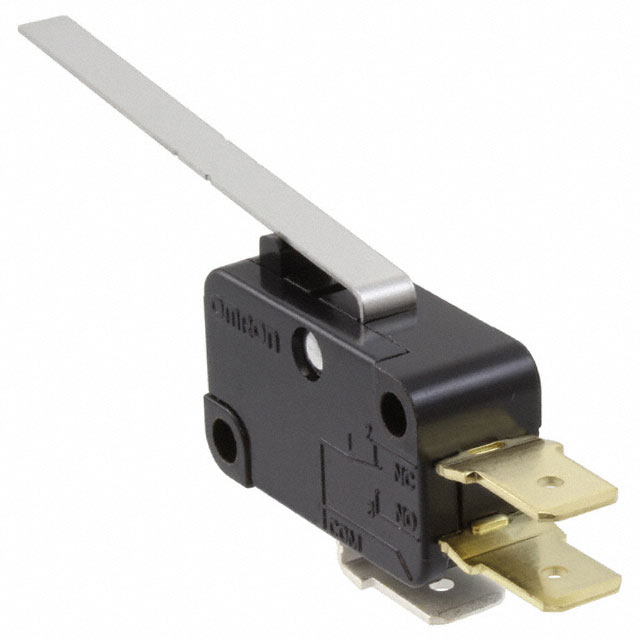

V-153-1C6

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 15A 250V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 15A 250V

Technical Specifications

Parameters and characteristics for this part

Part	Release Force	Actuator Type	Circuit	Voltage Rating - DC	Overtravel	Overtravel	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Differential Travel	Differential Travel	Operating Force	Ingress Protection	Electrical Life	Operating Position	Operating Position	Pretravel	Pretravel	Termination Style	Voltage Rating - AC	Mechanical Life	Mounting Type	Current Rating (Amps)
Omron Electronics Inc-EMC Div V-153-1C6	12 gf	Lever Straight	SPDT	125 VDC	2 mm	0.079 in	-25 °C	80 C	On-Mom	2.8 mm	0.11 in	130 gf	IP40	100000 Cycles	0.6 in	15.2 mm	0.354 in	9 mm	Quick Connect - 0.250" (6.3mm)	250 V	50000000 Cycles	Chassis Mount	15 A 600 mA
Omron Electronics Inc-EMC Div V-153-3C25	6.118 gf	Lever Straight	SPST-NO	125 VDC	2 mm	0.079 in	-25 °C	80 C	Off-Mom	2.8 mm	0.11 in	70 gf	IP40	100000 Cycles	0.6 in	15.2 mm	0.354 in	9 mm	Quick Connect - 0.187" (4.7mm)	250 V	50000000 Cycles	Chassis Mount	15 A 600 mA
Omron Electronics Inc-EMC Div V-153-1C5	6.118 gf	Lever Straight	SPDT	125 VDC	2 mm	0.079 in	-25 °C	80 C	On-Mom	2.8 mm	0.11 in	70 gf	IP40	100000 Cycles	0.6 in	15.2 mm	0.354 in	9 mm	Quick Connect - 0.250" (6.3mm)	250 V	50000000 Cycles	Chassis Mount	15 A 600 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 3.44
