TST12RB05T

Active

ITT Cannon, LLC

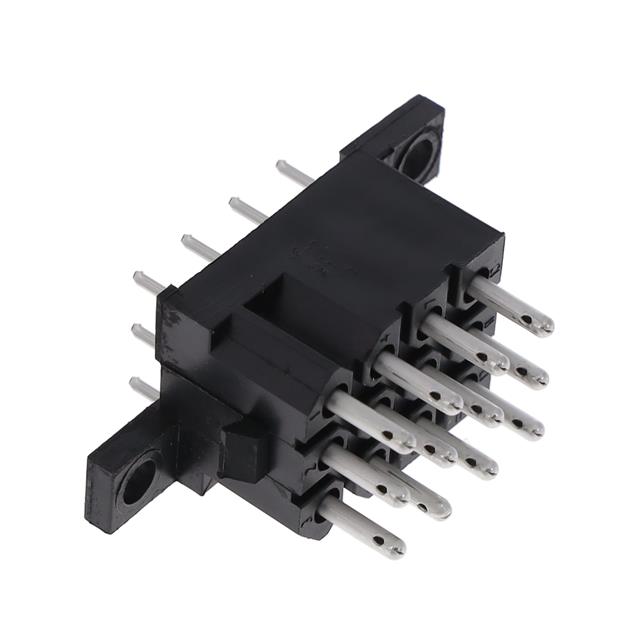

RECTANGULAR POWER CONNECTOR, TRIDENT SERIES, THROUGH HOLE, PLUG, 12, 5.08 MM, PIN ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet One Page Summary EN +1

TST12RB05T

Active

ITT Cannon, LLC

RECTANGULAR POWER CONNECTOR, TRIDENT SERIES, THROUGH HOLE, PLUG, 12, 5.08 MM, PIN ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet One Page Summary EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TST12RB05T

Applications	Industrial, Automotive
Connector Type	Receptacle
Contact Length - Post	0.224 "
Contact Length - Post	5.7 mm
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	13 A
Fastening Type	Latch Holder
Features	Mounting Flange
Insulation Color	Black
Insulation Height	13.5 mm
Insulation Height	0.531 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	5.08 mm
Pitch - Mating	0.2 in
Row Spacing - Mating [x]	5.08 mm
Row Spacing - Mating [x]	0.2 "
Shrouding	Unshrouded
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

TST12 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Material Flammability Rating	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Contact Type	Style	Termination	Connector Type	Features	Current Rating (Amps)	Contact Shape	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Applications	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Voltage Rating	Fastening Type	Insulation Color	Shrouding	Insulation Material	Contact Finish Thickness - Mating	Contact Finish - Mating
ITT Cannon, LLC TST12RB05T	-40 °C	105 ░C	12	UL94 V-0	All	0.224 "	5.7 mm	Male Pin	Board to Cable/Wire	Solder	Receptacle	Mounting Flange	13 A	Circular	13.5 mm	0.531 in	5.08 mm	0.2 in	Automotive Industrial	5.08 mm	0.2 "	Through Hole	250 VDC	Latch Holder	Black	Unshrouded	Nylon Polyamide (PA)
ITT Cannon, LLC TST12RB06T	-40 °C	105 ░C	12	UL94 V-0	All	0.224 "	5.7 mm	Female Socket	Board to Board Cable	Solder	Receptacle	Mounting Flange		Circular	13.5 mm	0.531 in	5.08 mm	0.2 in	Automotive General Purpose	5.08 mm	0.2 "	Through Hole		Latch Holder	Black		Nylon Polyamide (PA)
ITT Cannon, LLC TST12RR01Z	-40 °C	105 ░C	12	UL94 V-0	All			Male Pin	Board to Cable/Wire	Solder	Receptacle		13 A	Circular			5.08 mm	0.2 in	Automotive Industrial	5.08 mm	0.2 "	Through Hole Right Angle	250 VDC	Latch Holder	Black	Unshrouded	Nylon Polyamide (PA)	Flash	Gold
ITT Cannon, LLC TST12RR02T	-40 °C	105 ░C	12	UL94 V-0	All			Female Socket	Board to Board Cable	Solder	Receptacle			Circular			5.08 mm	0.2 in	Automotive General Purpose	5.08 mm	0.2 "	Through Hole Right Angle		Latch Holder	Black		Nylon Polyamide (PA)
