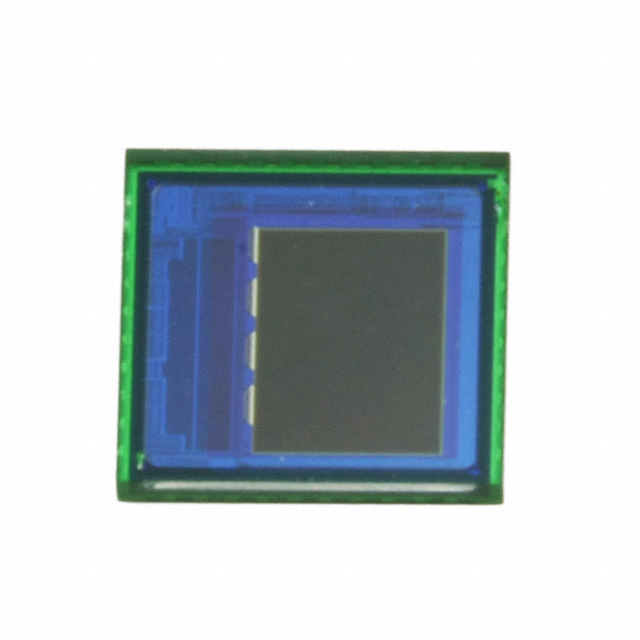

OV07740-A32A
ObsoleteOmniVision Technologies Inc
SENSOR IMAGE CMOS VGA 32-CSP3
Deep-Dive with AI
Search across all available documentation for this part.
OV07740-A32A
ObsoleteOmniVision Technologies Inc
SENSOR IMAGE CMOS VGA 32-CSP3
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | OV07740-A32A |
|---|---|
| Active Pixel Array [x] | 656 |
| Active Pixel Array [y] | 488 |
| Frames per Second | 30 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 °C |
| Package / Case | 32-CSP3 |
| Pixel Size [x] | 4.2 µm |
| Pixel Size [y] | 4.2 µm |
| Type | CMOS |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
OV07740 Series
CMOS Image Sensor 656H x 488V 4.2µm x 4.2µm
