3240828

Active

Phoenix Contact

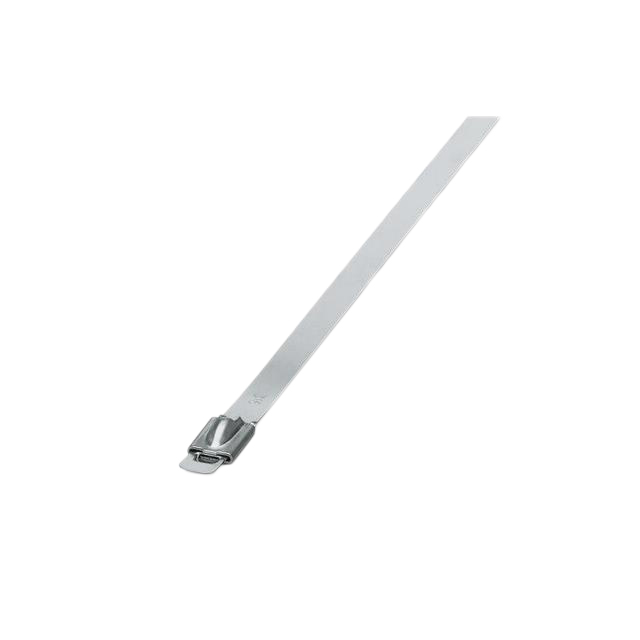

CBL TIE LOCKING SIL 300LB 1.181'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3240828

Active

Phoenix Contact

CBL TIE LOCKING SIL 300LB 1.181'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3240828

Bundle Diameter [diameter]	102 mm
Bundle Diameter [diameter]	4.02 in
Color	Silver
Features	Halogen Free
Length - Actual	360 mm
Length - Actual [x]	1.181 ft
Length - Approximate	14.25 in
Material	Stainless Steel 316
Mounting Type	Free Hanging (In-Line)
Tensile Strength	136.08 kg
Tensile Strength	300 lbs
Width [x]	0.311 "
Width [x]	7.9 mm
Wire/Cable Tie Type	Standard, Locking

WT-STEEL Series

Part	Material	Width [x]	Width [x]	Tensile Strength	Tensile Strength	Features	Length - Approximate	Wire/Cable Tie Type	Length - Actual	Length - Actual [x]	Mounting Type	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Color	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Type	Type Attributes	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Width [y]	Width [y]	Bundle Diameter	Bundle Diameter	Length - Actual [x]	Length - Approximate [x]
Phoenix Contact 3240828	Stainless Steel 316	0.311 "	7.9 mm	136.08 kg	300 lbs	Halogen Free	14.25 in	Locking Standard	360 mm	1.181 ft	Free Hanging (In-Line)	102 mm	4.02 in	Silver
Phoenix Contact 3240871	Galvanized PVC Coated Steel													Black	27 mm	1.063 in	Protective Hose Wire Loom	Convoluted Corrugated	-25 °C	80 C	1 m	3.28 ft	0.866 in	22 mm
Phoenix Contact 3240811	Stainless Steel 304					Halogen Free	20.5 in	Locking Standard		1.706 '	Free Hanging (In-Line)			Silver											0.181 in	4.6 mm	152 mm	5.98 "	520 mm
Phoenix Contact 3240826	Stainless Steel 316	0.311 "	7.9 mm					Strapping		3.5 ft	Free Hanging (In-Line)			Silver															1.07 m	60 in
Phoenix Contact 3240870	Galvanized PVC Coated Steel													Black	21 mm	0.827 in	Protective Hose Wire Loom	Convoluted Corrugated	-25 °C	80 C	1 m	3.28 ft	0.669 in	17 mm
Phoenix Contact 3240830	Stainless Steel 316	0.311 "	7.9 mm	136.08 kg	300 lbs	Halogen Free	26.75 in	Locking Standard		2.231 ft	Free Hanging (In-Line)	203 mm	7.99 in	Silver															679.96 mm
Phoenix Contact 3240829	Stainless Steel 316	0.311 "	7.9 mm	136.08 kg	300 lbs	Halogen Free	20.5 in	Locking Standard		1.706 '	Free Hanging (In-Line)			Silver													152 mm	5.98 "	520 mm
Phoenix Contact 3240873	Galvanized PVC Coated Steel													Black	45 mm	1.772 in	Protective Hose Wire Loom	Convoluted Corrugated	-25 °C	80 C	1 m	3.28 ft	1.496 "	38 mm
Phoenix Contact 3240727	Stainless Steel 316						15 in	Strapping		1.247 ft	Free Hanging (In-Line)			Silver											0.299 in	7.59 mm			380 mm
Phoenix Contact 3240810	Stainless Steel 304						14.5 in	Strapping	360 mm	1.181 ft	Free Hanging (In-Line)			Silver											0.181 in	4.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 1.30

Description

General part information

WT-STEEL Series

Standard, Locking Silver 4.02" (102.00mm) 0.311" (7.90mm) 300 lbs (136.08 kg)
