TR9CR4200LCP28IM-R6B

Active

GlobTek, Inc.

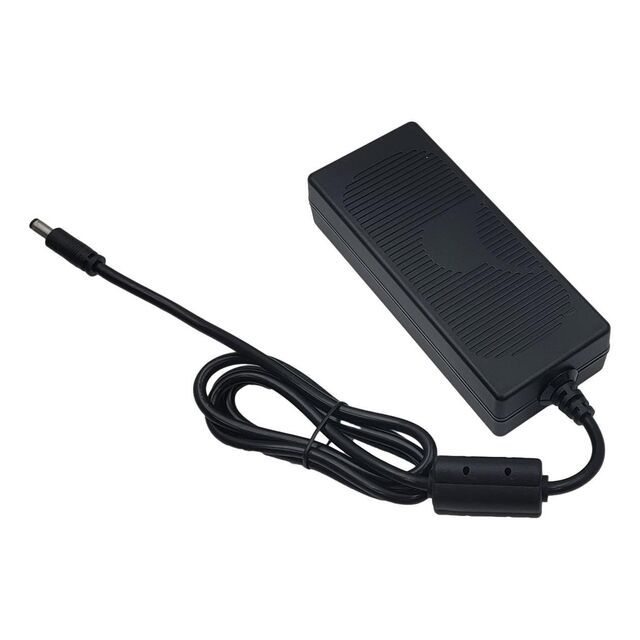

AC/DC DESKTOP ADAPTER 28V 120W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 28V 120W

Technical Specifications

Parameters and characteristics for this part

Specification	TR9CR4200LCP28IM-R6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	PSE, ETL, CB, CE, S-Mark, cETLus, VCCI, BSMI, UKRSepro, CCC, EAC
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	4.28 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-10 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Polarization	Positive Center
Power (Watts)	120 W
Region Utilized	International
Size / Dimension [x]	149.3 mm
Size / Dimension [x]	5.88 in
Size / Dimension [y]	62.8 mm
Size / Dimension [y]	2.47 in
Size / Dimension [z]	1.34 in
Size / Dimension [z]	34 mm
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	28 V

Part	Current - Output (Max) [Max]	No Load Power Consumption [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Cord Length	Cord Length	Input Type	Operating Temperature [Min]	Operating Temperature [Max]	Region Utilized	Output Connector	Output Connector [diameter]	Output Connector [x]	Input Connector	Power (Watts)	Polarization	Applications	Form	Approval Agency	Efficiency	Voltage - Output	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]
GlobTek, Inc. TR9CR4200LCP28IM-R6B	4.28 A	150 mW	90 VAC	264 VAC	1.2 m	47.2 in	Cord	-10 °C	40 °C	International	Barrel Plug	2.5 mm 5.5 mm	11 mm	IEC 320-C14	120 W	Positive Center	Household Appliances ITE (Commercial) Medical	Desktop (Class I)	BSMI CB CCC CE cETLus EAC ETL PSE S-Mark UKRSepro VCCI	CoC Tier 2 Level VI	28 V	149.3 mm	62.8 mm	2.47 in	1.34 in	5.88 in	34 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 45.00

General part information

28V 120 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
