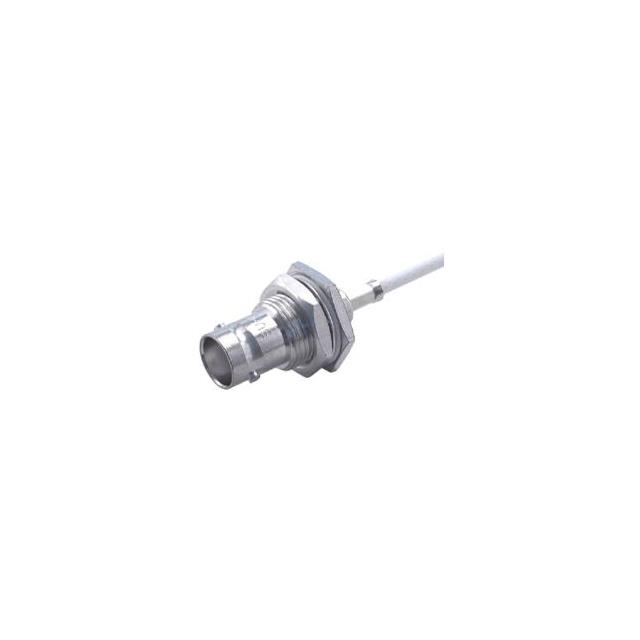

24_BNC-75-2-6/133_NH

Active

Huber+Suhner, Inc.

RF BNC CONNECTOR, 1 CONTACT(S), FEMALE, PANEL MOUNT, CABLE MOUNT, CRIMP TERMINAL, JACK, ROHS COMPLIANT

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

RF BNC CONNECTOR, 1 CONTACT(S), FEMALE, PANEL MOUNT, CABLE MOUNT, CRIMP TERMINAL, JACK, ROHS COMPLIANT

Technical Specifications

Parameters and characteristics for this part

Specification	24_BNC-75-2-6/133_NH

Body Finish	White Bronze
Body Material	Brass
Cable Group	187, RG-179
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	1 GHz
Housing Color	Silver
Impedance	75 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Mounting Feature	Body Material	Shield Termination	Voltage Rating	Mating Cycles	Impedance	Frequency - Max [Max]	Number of Ports	Cable Group	Contact Termination	Center Contact Plating	Connector Style	Housing Color	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Dielectric Material	Fastening Type	Connector Type
Huber+Suhner, Inc. 24_BNC-75-2-6/133_NH	Bulkhead - Front Side Nut	Brass	Crimp	500 V	500	75 Ohms	1 GHz	1	187 RG-179	Crimp	Gold	BNC	Silver	White Bronze	-65 ░C	165 °C	Beryllium Copper Brass	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Bayonet Lock	Female Socket Jack
Huber+Suhner, Inc. 24_BNC-75-2-1/133_NE	Bulkhead - Front Side Nut	Brass	Crimp		500	75 Ohms	1 GHz	1		Solder	Gold	BNC	Gold	Gold	-65 ░C	165 °C	Beryllium Copper	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Bayonet Lock	Female Socket Jack
Huber+Suhner, Inc. 24_BNC-75-3-11/133_NE	Bulkhead - Front Side Nut	Brass	Solder		500	75 Ohms	1 GHz	1		Solder	Gold	BNC	Silver	Tri-Metal	-65 ░C	165 °C	Beryllium Copper	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Bayonet Lock	Female Socket Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 11.13

General part information

BNC Connector Jack, Female Socket 75 Ohms Panel Mount Crimp
