MPQ3428AGL-AEC1-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)

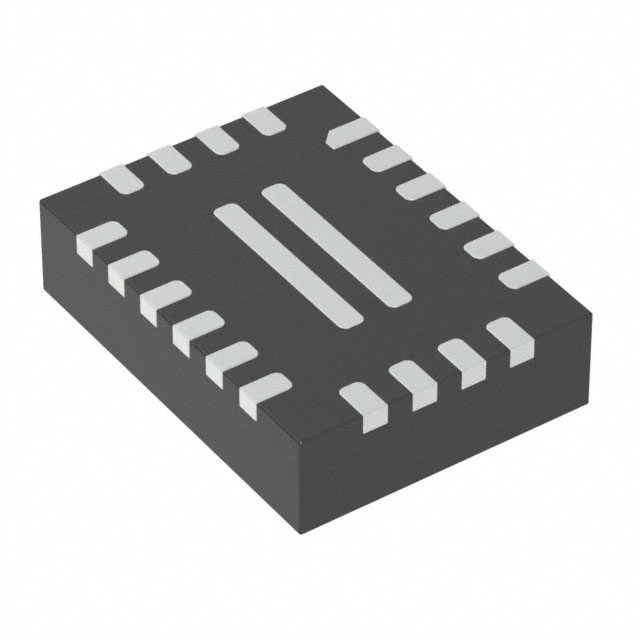

IC REG BOOST ADJ 19A 22QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MPQ3428AGL-AEC1-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
IC REG BOOST ADJ 19A 22QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MPQ3428AGL-AEC1-Z |
|---|---|
| Current - Output | 19 A |
| Frequency - Switching | 600 kHz |
| Function | Step-Up |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 22-PowerVFQFN |
| Qualification | AEC-Q100 |
| Synchronous Rectifier | True |
| Topology | Boost |
| Voltage - Input (Max) [Max] | 20 V |
| Voltage - Input (Min) [Min] | 3 V |
| Voltage - Output (Max) [Max] | 22 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MPQ3428 Series
Boost Switching Regulator IC Positive Adjustable 3V 1 Output 19A 22-PowerVFQFN
