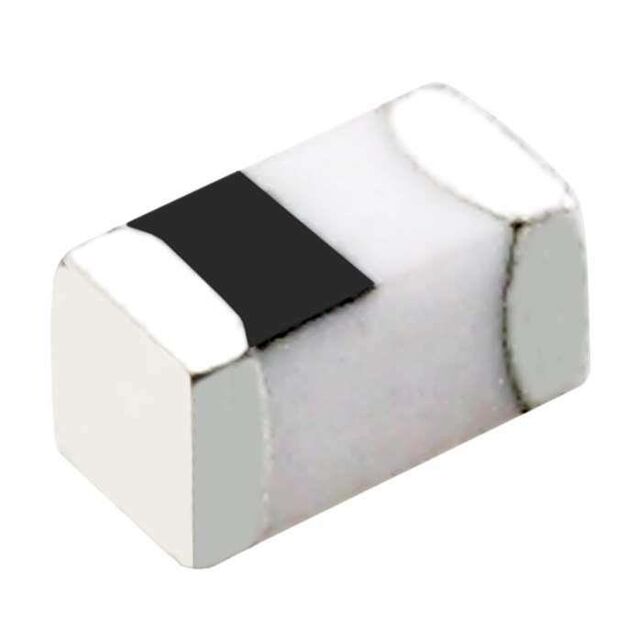

AIMC-Q0402-27NG-T

Active

Abracon LLC

IND 27NH 0.3A 800MOHM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AIMC-Q0402-27NG-T

Active

Abracon LLC

IND 27NH 0.3A 800MOHM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AIMC-Q0402-27NG-T

Current Rating (Amps)	300 mA
DC Resistance (DCR) [Max]	800 mOhm
Frequency - Self Resonant	1.7 GHz
Height - Seated (Max) [Max] [z]	0.6 mm
Height - Seated (Max) [Max] [z]	0.024 in
Inductance	27 nH
Inductance Frequency - Test	100 MHz
Material - Core	Ceramic
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	0402 (1005 Metric)
Q @ Freq	8
Ratings	AEC-Q200
Shielding	Unshielded
Size / Dimension [x]	1 mm
Size / Dimension [x]	0.039 in
Size / Dimension [y]	0.6 mm
Size / Dimension [y]	0.024 "
Supplier Device Package	0402 (1005 Metric)
Tolerance	2 %
Type	Multilayer

AIMC-Q0402 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Material - Core	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Inductance	Q @ Freq	Type	Inductance Frequency - Test	Supplier Device Package	Frequency - Self Resonant	Package / Case	Ratings	Tolerance	Current Rating (Amps)	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	DC Resistance (DCR)	Shielding	DC Resistance (DCR) [Max]
Abracon LLC AIMC-Q0402-3N6B-T	-55 °C	125 °C	Ceramic	0.6 mm	1 mm	0.024 "	0.039 in	3.6 nH	8	Multilayer	100 MHz	0402 (1005 Metric)	6 GHz	0402 (1005 Metric)	AEC-Q200	0.1 nH	700 mA	Surface Mount	0.6 mm	0.024 in	200 mOhm	Unshielded
Abracon LLC AIMC-Q0402-27NG-T	-55 °C	125 °C	Ceramic	0.6 mm	1 mm	0.024 "	0.039 in	27 nH	8	Multilayer	100 MHz	0402 (1005 Metric)	1.7 GHz	0402 (1005 Metric)	AEC-Q200	2 %	300 mA	Surface Mount	0.6 mm	0.024 in		Unshielded	800 mOhm
Abracon LLC AIMC-Q0402-56NJ-T	-55 °C	125 °C	Ceramic	0.6 mm	1 mm	0.024 "	0.039 in	56 nH	8	Multilayer	100 MHz	0402 (1005 Metric)	1 GHz	0402 (1005 Metric)	AEC-Q200	5 %	0.2 A	Surface Mount	0.6 mm	0.024 in		Unshielded	1.1 Ohm
Abracon LLC AIMC-Q0402-15NH-T	-55 °C	125 °C	Ceramic	0.6 mm	1 mm	0.024 "	0.039 in	15 nH	8	Multilayer	100 MHz	0402 (1005 Metric)	2.5 GHz	0402 (1005 Metric)	AEC-Q200	3 %	400 mA	Surface Mount	0.6 mm	0.024 in		Unshielded	550 mOhm
Abracon LLC AIMC-Q0402-1N0S-T	-55 °C	125 °C	Ceramic	0.6 mm	1 mm	0.024 "	0.039 in	1 nH	8	Multilayer	100 MHz	0402 (1005 Metric)	10 GHz	0402 (1005 Metric)	AEC-Q200	0.3 nH	1 A	Surface Mount	0.6 mm	0.024 in		Unshielded	80 mOhm
Abracon LLC AIMC-Q0402-3N0B-T	-55 °C	125 °C	Ceramic	0.6 mm	1 mm	0.024 "	0.039 in	3 nH	8	Multilayer	100 MHz	0402 (1005 Metric)	6 GHz	0402 (1005 Metric)	AEC-Q200	0.1 nH	800 mA	Surface Mount	0.6 mm	0.024 in		Unshielded	160 mOhm
Abracon LLC AIMC-Q0402-5N1S-T	-55 °C	125 °C	Ceramic	0.6 mm	1 mm	0.024 "	0.039 in	5.1 nH	8	Multilayer	100 MHz	0402 (1005 Metric)	5.3 GHz	0402 (1005 Metric)	AEC-Q200	0.3 nH	600 mA	Surface Mount	0.6 mm	0.024 in		Unshielded	230 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.10
		10	$ 0.08
		100	$ 0.07
		1000	$ 0.06
		5000	$ 0.06
	Digi-Reel®	1	$ 0.10
		10	$ 0.08
		100	$ 0.07
		1000	$ 0.06
		5000	$ 0.06
	Tape & Reel (TR)	10000	$ 0.04
		20000	$ 0.04
		30000	$ 0.04
		50000	$ 0.04

Description

General part information

AIMC-Q0402 Series

27 nH Unshielded Multilayer Inductor 300 mA 800mOhm Max 0402 (1005 Metric)
