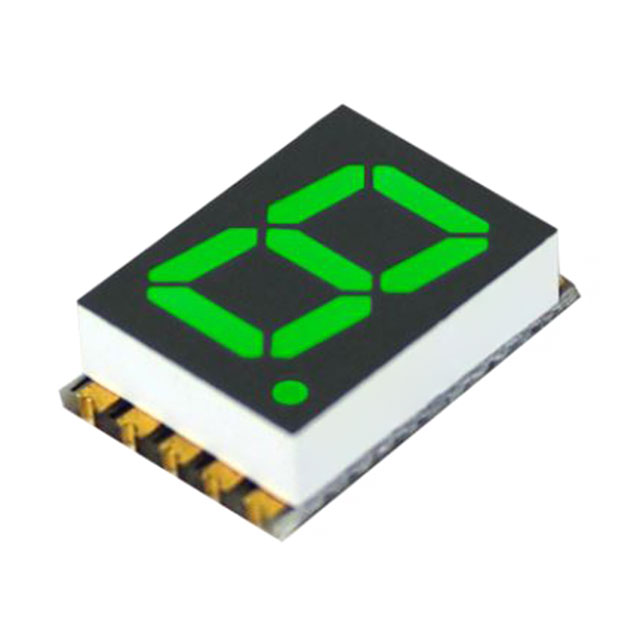

DSM7TA39105T
ActiveVisual Communications Company - VCC
DISPLAY 7SEG 0.39" SGL GRN 10SMD
Deep-Dive with AI
Search across all available documentation for this part.
DSM7TA39105T
ActiveVisual Communications Company - VCC
DISPLAY 7SEG 0.39" SGL GRN 10SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DSM7TA39105T |
|---|---|
| Color | Green |
| Common Pin | Common Anode |
| Current - Test | 20 mA |
| Digit/Alpha Size | 9.9 mm |
| Digit/Alpha Size | 0.39 in |
| Display Type | 7-Segment |
| Millicandela Rating | 150 mcd |
| Number of Characters [custom] | 1 |
| Package / Case | 10-SMD, No Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 9.8 mm |
| Size / Dimension [y] | 0.386 in |
| Size / Dimension [z] | 15 mm |
| Size / Dimension [z] | 0.591 " |
| Voltage - Forward (Vf) (Typ) | 3 V |
| Wavelength - Peak | 525 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.96 | |
| 10 | $ 1.98 | |||
| 100 | $ 1.52 | |||
| 500 | $ 1.37 | |||
| Digi-Reel® | 1 | $ 2.96 | ||
| 10 | $ 1.98 | |||
| 100 | $ 1.52 | |||
| 500 | $ 1.37 | |||
| Tape & Reel (TR) | 1200 | $ 1.06 | ||
Description
General part information
DSM7TA39105 Series
Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Anode 3V 20mA 0.591" H x 0.386" W x 0.126" D (15.00mm x 9.80mm x 3.20mm) 10-SMD, No Lead
