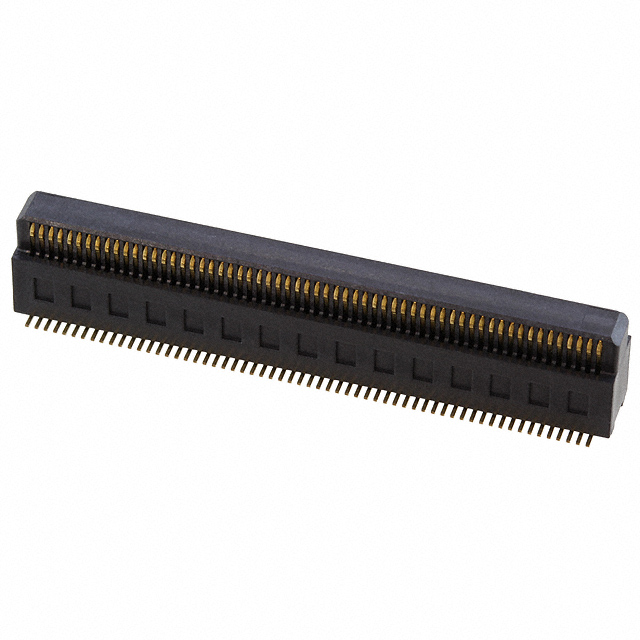

WR-120S-VFH30-N1

Active

JAE Electronics

CONN RCPT 120POS SMD GOLD

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT 120POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	WR-120S-VFH30-N1

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Height Above Board	6.25 mm
Height Above Board	0.246 in
Mated Stacking Heights	9 mm, 7 mm, 8 mm
Mounting Type	Surface Mount
Number of Positions	120
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Features	Mounting Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Pitch [x]	Pitch [x]	Number of Rows	Height Above Board	Height Above Board	Mated Stacking Heights	Number of Positions
JAE Electronics WR-120SB-VFH30-N1-R1000	Board Guide	Surface Mount	Gold	4 Áin	0.1 Ám	Center Strip Contacts Receptacle	0.5 mm	0.02 in	2	6.25 mm	0.246 in	7 mm 8 mm 9 mm	120
JAE Electronics WR-120S-VFH30-N1		Surface Mount	Gold	4 Áin	0.1 Ám	Center Strip Contacts Receptacle	0.5 mm	0.02 in	2	6.25 mm	0.246 in	7 mm 8 mm 9 mm	120
JAE Electronics WR-120S-VF-N1-R1500		Surface Mount	Gold	4 Áin	0.1 Ám	Center Strip Contacts Receptacle	0.5 mm	0.02 in	2	3.25 mm	0.128 in	4 mm 5 mm 6 mm	120
JAE Electronics WR-120SB-VF-N1-R1500	Board Guide	Surface Mount	Gold	4 Áin	0.1 Ám	Center Strip Contacts Receptacle	0.5 mm	0.02 in	2	3.25 mm	0.128 in	4 mm 5 mm 6 mm	120
JAE Electronics WR-120S-VFH05-N1-R1500		Surface Mount	Gold	4 Áin	0.1 Ám	Center Strip Contacts Receptacle	0.5 mm	0.02 in	2	3.75 mm	0.148 in	4.5 mm 5.5 mm 6.5 mm	120
JAE Electronics WR-120S-VFH30-N1-R1000		Surface Mount	Gold	4 Áin	0.1 Ám	Center Strip Contacts Receptacle	0.5 mm	0.02 in	2	6.25 mm	0.246 in	7 mm 8 mm 9 mm	120
JAE Electronics WR-120S-VFH05-N1		Surface Mount	Gold	4 Áin	0.1 Ám	Center Strip Contacts Receptacle	0.5 mm	0.02 in	2	3.75 mm	0.148 in	4.5 mm 5.5 mm 6.5 mm	120
JAE Electronics WR-120SB-VFH30-N1-C100	Board Guide	Surface Mount	Gold	4 Áin	0.1 Ám	Center Strip Contacts Receptacle	0.5 mm	0.02 in	2	6.25 mm	0.246 in	7 mm 8 mm 9 mm	120

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

120 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
