09340162601

Active

HARTING Technology Group

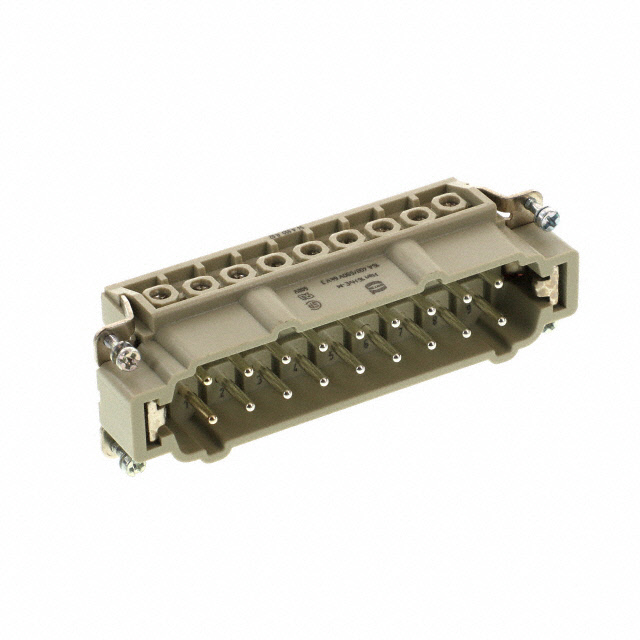

HEAVY DUTY CONNECTOR, 16+PE, 2 ADDITIONAL CONTACTS, HIGH VOLTAGE, HAN HV E SERIES, INSERT

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, 16+PE, 2 ADDITIONAL CONTACTS, HIGH VOLTAGE, HAN HV E SERIES, INSERT

Technical Specifications

Parameters and characteristics for this part

Specification	09340162601

Color	Gray
Contact Finish	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	16 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions [custom]	16
Number of Positions [custom]	2
Number of Positions [custom]	Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Termination Style	Screw

Part	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Color	Termination Style	Contact Finish	Contact Material	Size	Gender	Material Flammability Rating	Current Rating (Amps)	Housing Material
HARTING Technology Group 09340162601	125 °C	-40 °C	16	2	Ground	Gray	Screw	Silver	Copper Alloy	24 B	Male	UL94 V-0	16 A	Polycarbonate (PC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert Gray 16+2+Ground Position Screw
