8401-0-15-01-47-01-04-0

Active

Mill-Max Manufacturing Corp.

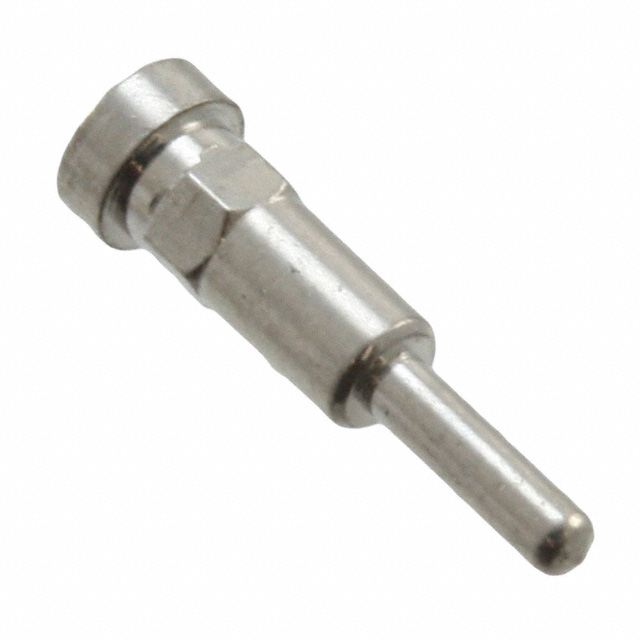

CONN RECEPT PIN .025-.037" .250"

Deep-Dive with AI

Search across all available documentation for this part.

8401-0-15-01-47-01-04-0

Active

Mill-Max Manufacturing Corp.

CONN RECEPT PIN .025-.037" .250"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8401-0-15-01-47-01-04-0

Accepts Pin Diameter [Max]	0.037 "
Accepts Pin Diameter [Max]	0.94 mm
Accepts Pin Diameter [Min]	0.64 mm
Accepts Pin Diameter [Min]	0.025 "
Accepts Square Pin Size [diameter]	0.64 mm
Accepts Square Pin Size [diameter]	0.025 in
Contact Finish	Tin-Lead
Contact Finish Thickness	200 Áin
Contact Finish Thickness	5.08 Ám
Contact Material	Beryllium Copper
Flange Diameter [diameter]	2.01 mm
Flange Diameter [diameter]	0.079 in
Length - Overall [x]	7.24 mm
Length - Overall [x]	0.285 in
Mounting Hole Diameter [diameter]	1.6 mm
Mounting Hole Diameter [diameter]	0.063 in
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.051 in
Pin Hole Diameter [diameter]	1.3 mm
Socket Depth	3.66 mm
Socket Depth	0.144 "
Tail Diameter [diameter]	0.79 mm
Tail Diameter [diameter]	0.031 in
Tail Type	Standard Tail
Termination	Press-Fit, Hex

8401-0 Series

Part	Contact Finish	Accepts Square Pin Size [diameter]	Accepts Square Pin Size [diameter]	Termination	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Diameter [diameter]	Tail Diameter [diameter]	Tail Type	Length - Overall [x]	Length - Overall [x]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Socket Depth	Socket Depth	Contact Material	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Socket Depth [z]	Socket Depth [z]
Mill-Max Manufacturing Corp. 8401-0-15-01-47-01-04-0	Tin-Lead	0.64 mm	0.025 in	Press-Fit Hex	2.01 mm	0.079 in	0.79 mm	0.031 in	Standard Tail	7.24 mm	0.285 in	0.037 "	0.64 mm	0.94 mm	0.025 "	3.66 mm	0.144 "	Beryllium Copper	0.051 in	1.3 mm	-55 °C	125 °C	200 Áin	5.08 Ám	1.6 mm	0.063 in
Mill-Max Manufacturing Corp. 8401-0-15-01-47-27-04-0	Gold	0.64 mm	0.025 in	Press-Fit Hex	2.01 mm	0.079 in	0.79 mm	0.031 in	Standard Tail	7.24 mm	0.285 in	0.037 "	0.64 mm	0.94 mm	0.025 "	3.66 mm	0.144 "	Beryllium Copper	0.051 in	1.3 mm	-55 °C	125 °C	30 Áin	0.76 Ám	1.6 mm	0.063 in
Mill-Max Manufacturing Corp. 8401-0-15-15-47-14-04-0	Gold	0.64 mm	0.025 in	Press-Fit Hex	2.01 mm	0.079 in	0.79 mm	0.031 in	Standard Tail	7.24 mm	0.285 in	0.037 "	0.64 mm	0.94 mm	0.025 "			Beryllium Copper	0.051 in	1.3 mm	-55 °C	125 °C	10 Áin	0.25 Ám			0.089 in	2.26 mm
Mill-Max Manufacturing Corp. 8401-0-15-80-47-14-04-0	Gold	0.64 mm	0.025 in	Press-Fit Hex	2.01 mm	0.079 in	0.79 mm	0.031 in	Standard Tail	7.24 mm	0.285 in	0.037 "	0.64 mm	0.94 mm	0.025 "			Beryllium Copper	0.051 in	1.3 mm	-55 °C	125 °C	10 Áin	0.25 Ám			0.089 in	2.26 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.12
		10	$ 0.95
		25	$ 0.89
		50	$ 0.85
		100	$ 0.81
		250	$ 0.76
		500	$ 0.72
		1000	$ 0.69
		3000	$ 0.63

Description

General part information

8401-0 Series

Pin Receptacle Connector 0.025" ~ 0.037" (0.64mm ~ 0.94mm) Standard Tail Press-Fit, Hex

Documents

Technical documentation and resources

No documents available
