Technical Specifications
Parameters and characteristics for this part
| Specification | 1319SB 0105000 |
|---|---|
| Cable Type | Multi-Pair, Cat6 |
| Conductor Insulation | Polyolefin (PO) |
| Conductor Material | Copper, Bare |
| Conductor Strand | Solid |
| Features | Flame Retardant |
| Jacket (Insulation) Diameter [diameter] | 0.293 in |
| Jacket (Insulation) Diameter [diameter] | 7.44 mm |
| Jacket Color | Black |
| Number of Conductors | 8 |
| Ratings | UL Style CMG |
| Shield Coverage | 100 % |
| Shield Material | Meta-Aramid |
| Shield Type | Foil |
| Usage | Marine, Ethernet |
| Voltage | 300 V |
| Wire Gauge | 23 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 5000 | $ 0.99 | |
Description
General part information
1319SB Series

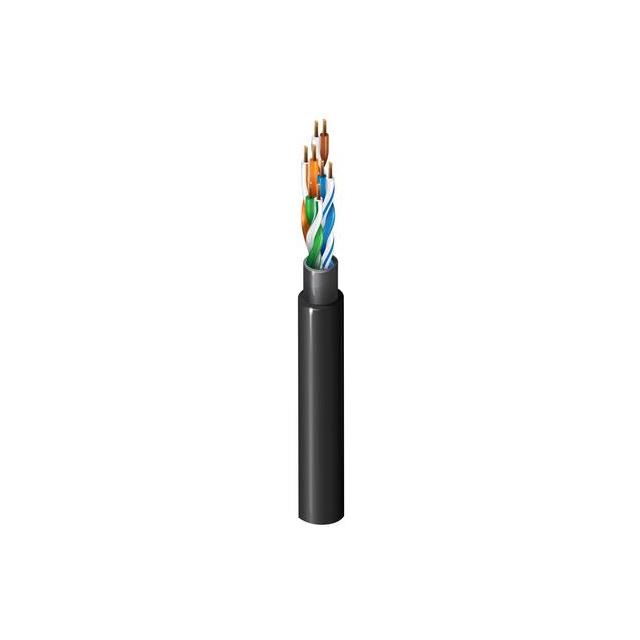

8 (4 Pair) Conductor Multi-Pair, Cat6 Cable Black 23 AWG Foil 5000' (1524.0m)
