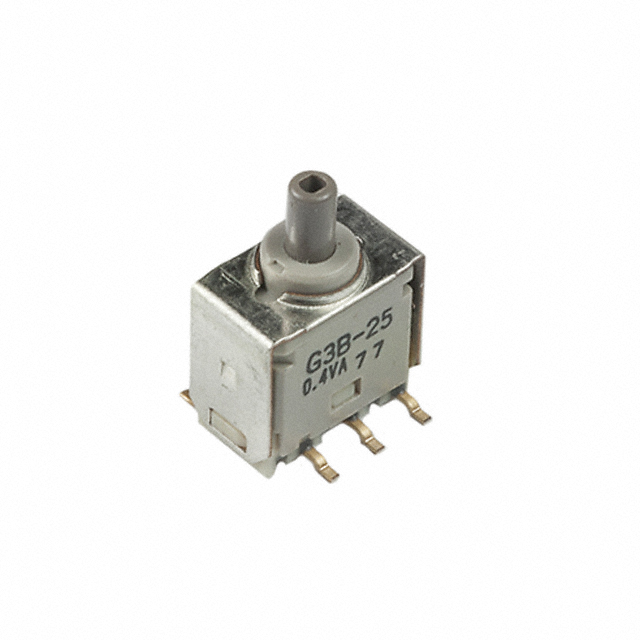

G3B25AP-S

Active

NKK Switches

ULTRA-MINIATURE PROCESS SEALED SMT PUSHBUTTON

Search across all available documentation for this part.

Active

NKK Switches

ULTRA-MINIATURE PROCESS SEALED SMT PUSHBUTTON

Technical Specifications

Parameters and characteristics for this part

Part	Circuit	Features	Mounting Type	Current Rating (Amps)	Termination Style	Type	Voltage Rating - DC	Actuator Marking	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Voltage Rating - AC	Switch Function	Actuator Type	Color - Actuator/Cap
NKK Switches G3B25AP-S	DPDT	Process Sealed	Surface Mount	0.4 VA	Gull Wing	Standard	28 V	No Marking	-30 ░C	85 °C	50000 Cycles	28 V	On-Mom	Round Plunger
NKK Switches G3B25AP-XB	DPDT	Process Sealed	Surface Mount	0.4 VA	Gull Wing	Standard	28 V	No Marking	-30 ░C	85 °C	50000 Cycles	28 V	On-Mom	Button Round	White
NKK Switches G3B25AP-S-XB	DPDT	Process Sealed	Surface Mount	0.4 VA	Gull Wing	Standard	28 V	No Marking	-30 ░C	85 °C	50000 Cycles	28 V	On-Mom	Button Round	White

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPDT Standard Surface Mount
