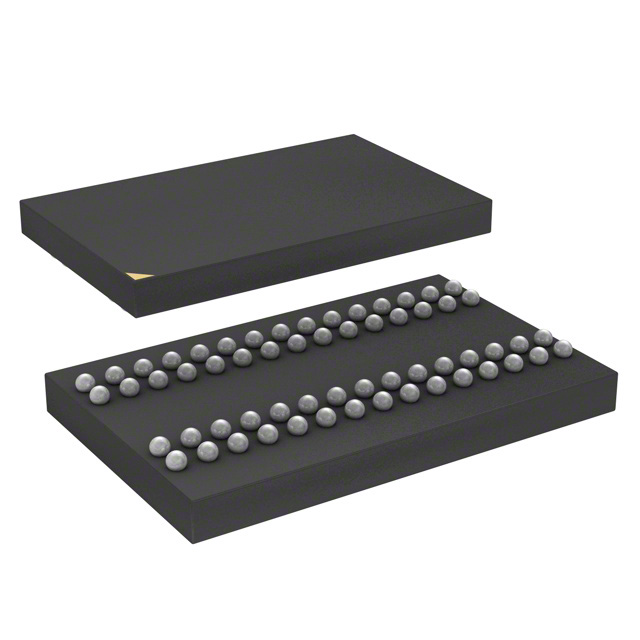

IS42S16400D-7BL-TR

Obsolete

ISSI, Integrated Silicon Solution Inc

IC DRAM 64MBIT PAR 60MINIBGA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IS42S16400D-7BL-TR

Obsolete

ISSI, Integrated Silicon Solution Inc

IC DRAM 64MBIT PAR 60MINIBGA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IS42S16400D-7BL-TR

Access Time	5.4 ns
Clock Frequency	143 MHz
Memory Format	DRAM
Memory Interface	Parallel
Memory Organization	4M x 16
Memory Size	64 Gbit
Memory Type	Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Package / Case	60-TFBGA
Supplier Device Package	60-MiniBGA
Supplier Device Package [x]	6.4
Supplier Device Package [y]	10.1
Technology	SDRAM
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	3 V

IS42S16400 Series

Part	Access Time	Memory Type	Memory Interface	Voltage - Supply [Max]	Voltage - Supply [Min]	Memory Size	Memory Organization	Package / Case	Mounting Type	Supplier Device Package	Technology	Clock Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Memory Format	Supplier Device Package [x]	Supplier Device Package [y]
ISSI, Integrated Silicon Solution Inc IS42S16400N-7BL-TR	5.4 ns	Volatile	LVTTL	3.6 V	3 V	64 Gbit	4M x 16	54-TFBGA	Surface Mount	54-TFBGA (8x8)	SDRAM	143 MHz	70 °C	0 °C	DRAM
ISSI, Integrated Silicon Solution Inc IS42S16400D-6T-TR	5 ns	Volatile	Parallel	3.6 V	3 V	64 Gbit	4M x 16		Surface Mount	54-TSOP II	SDRAM	166 MHz	70 °C	0 °C	DRAM
ISSI, Integrated Silicon Solution Inc IS42S16400D-7T	5.4 ns	Volatile	Parallel	3.6 V	3 V	64 Gbit	4M x 16		Surface Mount	54-TSOP II	SDRAM	143 MHz	70 °C	0 °C	DRAM
ISSI, Integrated Silicon Solution Inc IS42S16400D-7BL-TR	5.4 ns	Volatile	Parallel	3.6 V	3 V	64 Gbit	4M x 16	60-TFBGA	Surface Mount	60-MiniBGA	SDRAM	143 MHz	70 °C	0 °C	DRAM	6.4	10.1
ISSI, Integrated Silicon Solution Inc IS42S16400J-6BL	5.4 ns	Volatile	Parallel	3.6 V	3 V	64 Gbit	4M x 16	54-TFBGA	Surface Mount	54-TFBGA (8x8)	SDRAM	166 MHz	70 °C	0 °C	DRAM
ISSI, Integrated Silicon Solution Inc IS42S16400J-7BL	5.4 ns	Volatile	Parallel	3.6 V	3 V	64 Gbit	4M x 16	54-TFBGA	Surface Mount	54-TFBGA (8x8)	SDRAM	143 MHz	70 °C	0 °C	DRAM
ISSI, Integrated Silicon Solution Inc IS42S16400D-7TL-TR	5.4 ns	Volatile	Parallel	3.6 V	3 V	64 Gbit	4M x 16		Surface Mount	54-TSOP II	SDRAM	143 MHz	70 °C	0 °C	DRAM
ISSI, Integrated Silicon Solution Inc IS42S16400J-6BLI	5.4 ns	Volatile	Parallel	3.6 V	3 V	64 Gbit	4M x 16	54-TFBGA	Surface Mount	54-TFBGA (8x8)	SDRAM	166 MHz	85 °C	-40 °C	DRAM
ISSI, Integrated Silicon Solution Inc IS42S16400D-6BL	5 ns	Volatile	Parallel	3.6 V	3 V	64 Gbit	4M x 16	60-TFBGA	Surface Mount	60-MiniBGA	SDRAM	166 MHz	70 °C	0 °C	DRAM	6.4	10.1
ISSI, Integrated Silicon Solution Inc IS42S16400J-5BL	4.8 ns	Volatile	Parallel	3.6 V	3 V	64 Gbit	4M x 16	54-TFBGA	Surface Mount	54-TFBGA (8x8)	SDRAM	200 MHz	70 °C	0 °C	DRAM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

IS42S16400 Series

SDRAM Memory IC 64Mbit Parallel 143 MHz 5.4 ns 60-MiniBGA (6.4x10.1)

Documents

Technical documentation and resources
