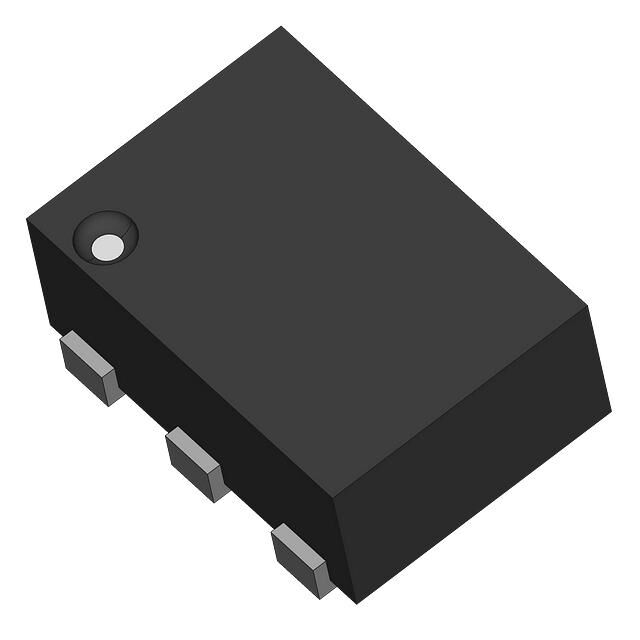

74AUP1G06GN,132

Active

Freescale Semiconductor - NXP

IC INVERTER 1CH 1-INP 6XSON

Search across all available documentation for this part.

Active

Freescale Semiconductor - NXP

IC INVERTER 1CH 1-INP 6XSON

Technical Specifications

Parameters and characteristics for this part

Specification	74AUP1G06GN,132

Current - Output High, Low	-
Current - Output High, Low	4 mA
Current - Quiescent (Max) [Max]	500 nA
Features	Open Drain
Input Logic Level - High [Max]	2 V
Input Logic Level - High [Min]	1.6 V
Logic Type	Inverter
Max Propagation Delay @ V, Max CL	10.5 ns
Mounting Type	Surface Mount
Number of Circuits	1
Number of Inputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-XFDFN
Supplier Device Package	6-XSON
Supplier Device Package [x]	0.9
Supplier Device Package [y]	1
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	0.8 V

Part	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Features	Voltage - Supply [Min]	Voltage - Supply [Max]	Max Propagation Delay @ V, Max CL	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Mounting Type	Package / Case	Logic Type	Input Logic Level - High [Max]	Input Logic Level - High [Min]	Current - Output High, Low	Current - Output High, Low	Number of Inputs	Current - Quiescent (Max) [Max]	Grade	Qualification
Freescale Semiconductor - NXP 74AUP1G06GN,132	1	125 °C	-40 °C	Open Drain	0.8 V	3.6 V	10.5 ns	6-XSON	0.9	1	Surface Mount	6-XFDFN	Inverter	2 V	1.6 V	-	4 mA	1	500 nA
Freescale Semiconductor - NXP 74AUP1G06GF,132	1	125 °C	-40 °C	Open Drain	0.8 V	3.6 V	10.5 ns	6-XSON SOT891 (1x1)			Surface Mount	6-XFDFN	Inverter	2 V	1.6 V	-	4 mA	1	500 nA
Freescale Semiconductor - NXP 74AUP1G06GW-Q100H	1	125 °C	-40 °C	Open Drain	0.8 V	3.6 V	10.5 ns	5-TSSOP			Surface Mount	5-TSSOP SC-70-5 SOT-353	Inverter	2 V	1.6 V	-	4 mA	1	500 nA	Automotive	AEC-Q100
Freescale Semiconductor - NXP 74AUP1G06GX,125	1	125 °C	-40 °C	Open Drain	0.8 V	3.6 V	10.5 ns	5-X2SON (0.80x0.80)			Surface Mount	4-XFDFN Exposed Pad	Inverter	2 V	1.6 V	-	4 mA	1	500 nA
Freescale Semiconductor - NXP 74AUP1G06GW,125	1	125 °C	-40 °C	Open Drain	0.8 V	3.6 V	10.5 ns	5-TSSOP			Surface Mount	5-TSSOP SC-70-5 SOT-353	Inverter	2 V	1.6 V	-	4 mA	1	500 nA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Inverter IC 1 Channel Open Drain 6-XSON (0.9x1)

Technical documentation and resources

No documents available
