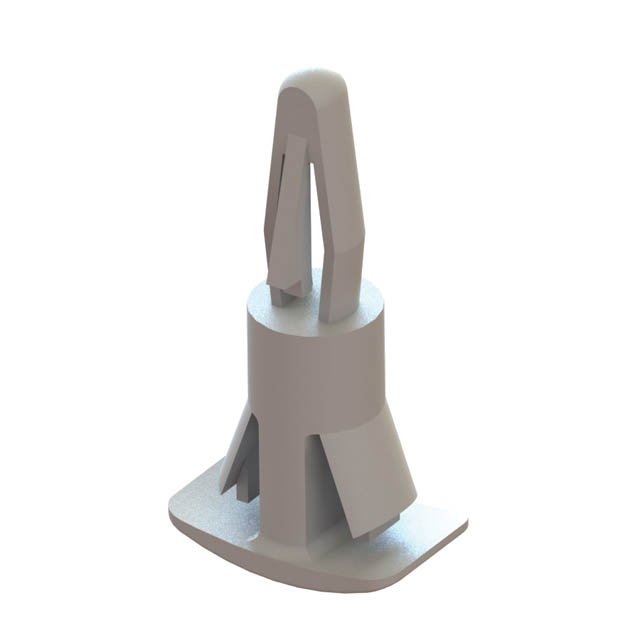

RLCBSC-8-01
ActiveEssentra Access Solutions
BRD SPT SNAP LOCK NYLON 8MM
Deep-Dive with AI
Search across all available documentation for this part.
RLCBSC-8-01
ActiveEssentra Access Solutions
BRD SPT SNAP LOCK NYLON 8MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RLCBSC-8-01 |
|---|---|
| Between Board Height [z] | 0.315 in |
| Between Board Height [z] | 8 mm |
| Features | Locking, Reverse Mounting |
| Holding Type | Snap Lock |
| Material | Nylon |
| Mounting Hole Diameter [diameter] | 0.213 in |
| Mounting Hole Diameter [diameter] | 5.4 mm |
| Mounting Type | Snap Lock |
| Support Hole Diameter [diameter] | 3.2 mm |
| Support Hole Diameter [diameter] | 0.126 in |
| Support Panel Thickness | 1.6 mm |
| Support Panel Thickness | 0.063 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.17 | |
| 10 | $ 0.14 | |||
| 25 | $ 0.13 | |||
| 50 | $ 0.13 | |||
| 100 | $ 0.12 | |||
| 250 | $ 0.11 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.10 | |||
| 3000 | $ 0.09 | |||
Description
General part information
RLCBSC Series
Board Support Snap Lock / Snap Lock Nylon 0.315" (8.00mm)
Documents
Technical documentation and resources
No documents available
