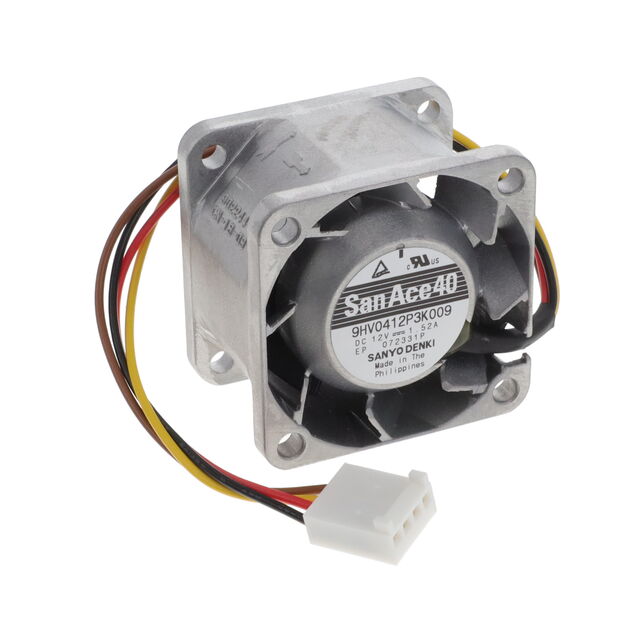

9HV0412P3K009

Active

Sanyo Denki America Inc.

FAN AXL 40X28MM 12VDC RECT CONN

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN AXL 40X28MM 12VDC RECT CONN

Technical Specifications

Parameters and characteristics for this part

Specification	9HV0412P3K009

Bearing Type	Ball
Current Rating (Amps)	1.52 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Material - Blade	Plastic
Material - Frame	Plastic
Noise	65 dB
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
RPM	25000 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Termination	4 Position Rectangular Connector
Voltage - Rated	12 VDC
Voltage Range [Max]	12.6 VDC
Voltage Range [Min]	10.8 VDC
Weight	60.33 g
Weight	0.133 lb
Width [y]	28 mm

Part	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Material - Blade	Width [y]	Fan Type	Material - Frame	Termination	Current Rating (Amps)	Noise	RPM	Bearing Type	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Weight	Weight	Voltage - Rated	Voltage Range [Min]	Voltage Range [Max]	Features	Power (Watts)	Approval Agency	Lifetime @ Temp.	Static Pressure	Static Pressure	Air Flow	Air Flow
Sanyo Denki America Inc. 9HV0412P3K009	40 mm	Square	40 mm	Plastic	28 mm	Tubeaxial	Plastic	4 Position Rectangular Connector	1.52 A	65 dB	25000 RPM	Ball	60 °C	-20 °C	-20 C	60 °C	60.33 g	0.133 lb	12 VDC	10.8 VDC	12.6 VDC	Locked Rotor Protection PWM Control Speed Sensor (Tach)
Sanyo Denki America Inc. 9HV0412P3K001	40 mm	Square	40 mm	Plastic	28 mm	Tubeaxial	Aluminum	4 Wire Leads	1.52 A	65 dB	25000 RPM	Ball	60 °C	-20 °C	-20 C	60 °C	60.33 g	0.133 lb	12 VDC	10.8 VDC	12.6 VDC	PWM Control Speed Sensor (Tach)	18.3 W	CSA TUV UL	40000 Hrs	4.42 in H2O	1100 Pa	29.3 CFM	0.82 m³/min

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 4 Position Rectangular Connector
