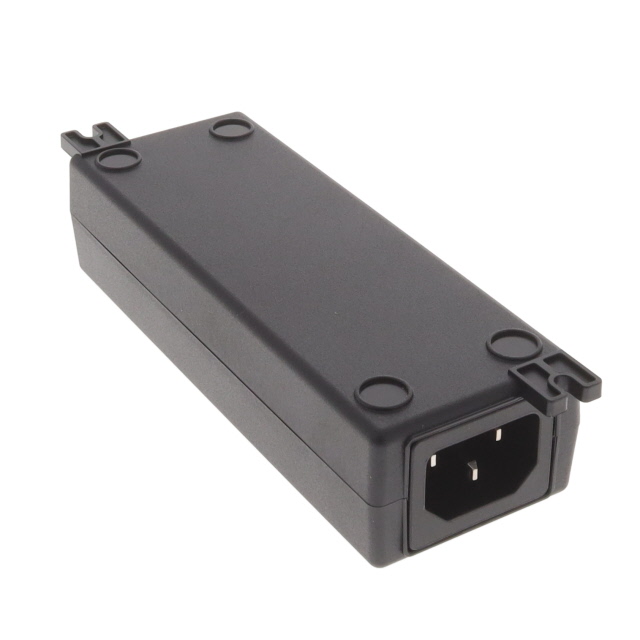

POEA30U-560-X-R

Active

Phihong USA

PASSIVE POE ADAPTER C14 10 GIGAB

Deep-Dive with AI

Search across all available documentation for this part.

POEA30U-560-X-R

Active

Phihong USA

PASSIVE POE ADAPTER C14 10 GIGAB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	POEA30U-560-X-R

Approval Agency	IEC, cULus
Current - Output	536 mA
Efficiency	85 %
Features	SCP, OCP, OVP
Input Connector	IEC 320-C14 (Power), RJ45 (Data)
Mounting Type	Desktop
Number of Ports	1
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-10 °C
Output Connector	RJ45 (Data, Power)
Power (Watts) - Per Port	30 W
Size / Dimension [x]	4.96 "
Size / Dimension [x]	126 mm
Size / Dimension [y]	45.5 mm
Size / Dimension [y]	1.79 "
Size / Dimension [z]	1.18 in
Size / Dimension [z]	30 mm
Standard Number	60950-1, 62368-1
Type	Passive Injector
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	56 V

POEA30 Series

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Approval Agency	Efficiency	Current - Output	Type	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Input Connector	Mounting Type	Standard Number	Operating Temperature [Min]	Operating Temperature [Max]	Features	Number of Ports	Output Connector	Power (Watts) - Per Port	Compliance	Note	Efficiency
Phihong USA POEA30U-560-X-R	4.96 "	1.18 in	45.5 mm	1.79 "	30 mm	126 mm	cULus IEC	85 %	536 mA	Passive Injector	90 VAC	264 VAC	56 V	IEC 320-C14 (Power) RJ45 (Data)	Desktop	60950-1 62368-1	-10 °C	40 °C	OCP OVP SCP	1	RJ45 (Data Power)	30 W
Phihong USA POEA30U-1AT-2-R	4.96 "	1.18 in	45.5 mm	1.79 "	30 mm	126 mm	AS/NZS BSMI CCC cULus IEC	85 %	536 mA	Passive Injector	90 VAC	264 VAC	56 V	IEC 320-C14 (Power) RJ45 (Data)	Desktop	60950-1 62368-1 CNS13438 CNS14336-1 CNS15663 GB/T9254-2008 GB17625.1-2012 GB4943.1-2011	-10 °C	40 °C	OCP OVP SCP	1	RJ45 (Data Power)	30 W	IEEE802.3at
Phihong USA POEA30U-1ATE-R	4.96 "	1.18 in	45.5 mm	1.79 "	30 mm	126 mm	AS/NZS BSMI CCC cULus IEC		536 mA	Passive Injector	90 VAC	264 VAC	56 V	IEC 320-C14 (Power) RJ45 (Data)	Desktop	60950-1 62368-1 CNS13438 CNS14336-1 CNS15663 GB/T9254-2008 GB17625.1-2012 GB4943.1-2011	-10 °C	40 °C	OCP OVP SCP	1	RJ45 (Data Power)	30 W	IEEE802.3at	AC Power Cord Sold Separately	Level VI
Phihong USA POEA30U-560-2-R	4.96 "	1.18 in	45.5 mm	1.79 "	30 mm	126 mm	cULus IEC	85 %	536 mA	Passive Injector	90 VAC	264 VAC	56 V	IEC 320-C14 (Power) RJ45 (Data)	Desktop	60950-1 62368-1	-10 °C	40 °C	OCP OVP SCP	1	RJ45 (Data Power)	30 W
Phihong USA POEA30U-1AT-X-R	4.96 "	1.18 in	45.5 mm	1.79 "	30 mm	126 mm	cULus IEC	85 %	536 mA	Passive Injector	90 VAC	264 VAC	56 V	IEC 320-C14 (Power) RJ45 (Data)	Desktop	60950-1 62368-1	-10 °C	40 °C	OCP OVP SCP	1	RJ45 (Data Power)	30 W	IEEE802.3at

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 64.92
		10	$ 63.50
		25	$ 62.27
		100	$ 58.71

Description

General part information

POEA30 Series

56V Power Over Ethernet (POE) 1 Port Passive Injector Data Rate

Documents

Technical documentation and resources

No documents available
