A6X30144841

Active

Siemens

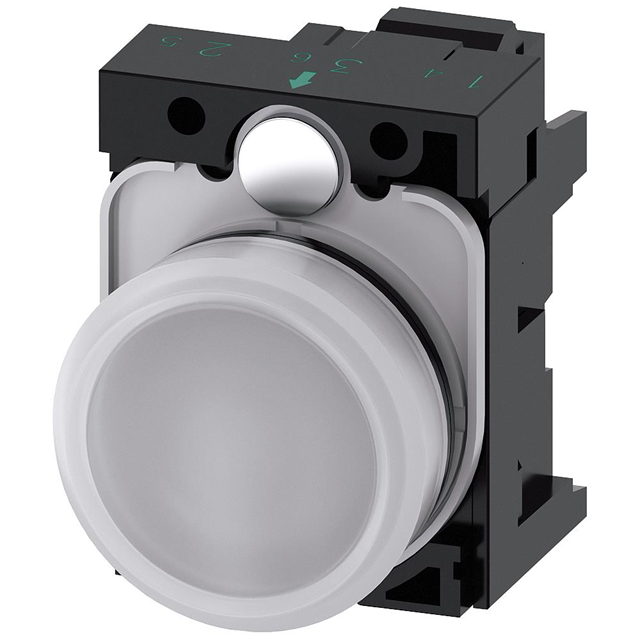

INDICATOR LIGHT. WHITE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A6X30144841

Active

Siemens

INDICATOR LIGHT. WHITE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A6X30144841

Ingress Protection	NEMA 1, IP67, NEMA 12, NEMA 2, NEMA 4, IP69K, NEMA 3, IP69, IP66, NEMA 13, NEMA 4X, NEMA 3R
Lamp Color	White
Lens Color	White
Lens Size [diameter]	22 mm
Lens Transparency	Diffused
Millicandela Rating [Max]	1400 mcd
Millicandela Rating [Min]	900 mcd
Panel Cutout Dimensions	0.88 in
Panel Cutout Dimensions	22.3 mm
Panel Cutout Shape	Round
Ratings	AC/DC
Termination Style	Spring Terminal
Type	LED
Voltage	24 V

A6X30144 Series

Part	Lens Size [diameter]	Termination Style	Panel Cutout Shape	Type	Voltage	Millicandela Rating [Max]	Millicandela Rating [Min]	Ingress Protection	Lamp Color	Ratings	Panel Cutout Dimensions	Panel Cutout Dimensions	Lens Color	Lens Transparency
Siemens A6X30144362	22 mm	Screw Terminal	Round	LED	24 V	1120 mcd	450 mcd	IP20 IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Red	AC/DC	0.88 in	22.3 mm	Red	Diffused
Siemens A6X30144839	22 mm	Screw Terminal	Round	LED	24 V	1400 mcd	900 mcd	IP20 IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	White	AC/DC	0.88 in	22.3 mm	White	Diffused
Siemens A6X30144551	22 mm	Spring Terminal	Round	LED	230 V	1400 mcd	900 mcd	IP20 IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	White	AC	0.88 in	22.3 mm	White	Diffused
Siemens A6X30144841	22 mm	Spring Terminal	Round	LED	24 V	1400 mcd	900 mcd	IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	White	AC/DC	0.88 in	22.3 mm	White	Diffused
Siemens A6X30144547	22 mm	Spring Terminal	Round	LED	230 V	1400 mcd	900 mcd	IP20 IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Yellow	AC	0.88 in	22.3 mm	Yellow	Diffused
Siemens A6X30144557	22 mm	Spring Terminal	Round	LED	230 V	1400 mcd	900 mcd	IP20 IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Clear	AC	0.88 in	22.3 mm	Colorless	Clear
Siemens A6X30144543	30 mm		Round	LED	230 V			IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Red	AC	0.88 in	22.3 mm	Red	Diffused
Siemens A6X30144359	22 mm	Screw Terminal	Round	LED	24 V	1400 mcd	900 mcd	IP20 IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Amber	AC/DC	0.88 in	22.3 mm	Amber	Diffused
Siemens A6X30144553	22 mm	Screw Terminal	Round	LED	230 V	1400 mcd	900 mcd	IP20 IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Clear	AC	0.88 in	22.3 mm	Colorless	Clear
Siemens A6X30144361	22 mm	Screw Terminal	Round	LED	24 V	1400 mcd	900 mcd	IP20 IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Amber	AC/DC	0.88 in	22.3 mm	Amber	Diffused

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 75.14
		10	$ 70.28
		100	$ 64.41

Description

General part information

A6X30144 Series

LED Panel Indicator White Diffused 24V Spring Terminal
