EA5R1050XKQ
ActiveBANNER ENGINEERING

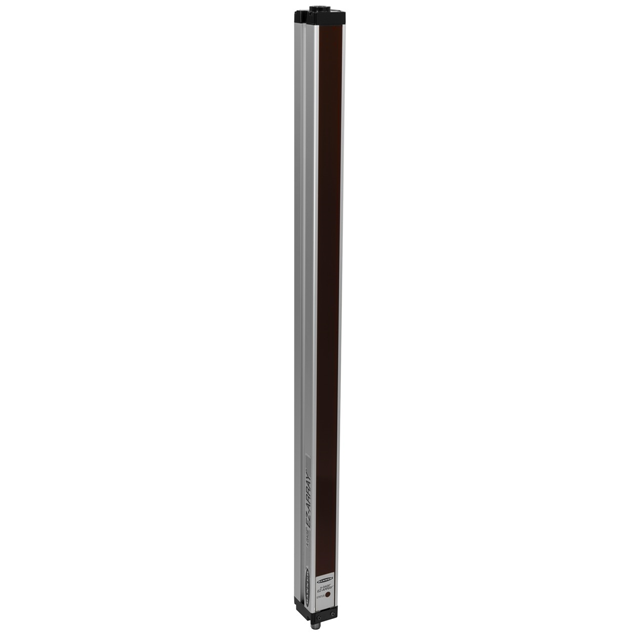

EA5R1050XKQ EZ-ARRAY 5MM OPTICAL SPACING X 1050MM RECVR WITH IO-LINK INTEGRAL EURO 8 PINS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EA5R1050XKQ
ActiveBANNER ENGINEERING
EA5R1050XKQ EZ-ARRAY 5MM OPTICAL SPACING X 1050MM RECVR WITH IO-LINK INTEGRAL EURO 8 PINS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EA5R1050XKQ |
|---|---|
| Ingress Protection | IEC IP65 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | PNP |
| Sensing Distance [Max] | 4 m |
| Sensing Distance [Max] | 157.48 " |
| Sensing Distance [Min] | 400 mm |
| Sensing Distance [Min] | 15.748 in |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EA5R1050 Series
Optical Sensor 15.748" ~ 157.480" (400mm ~ 4m) PNP
