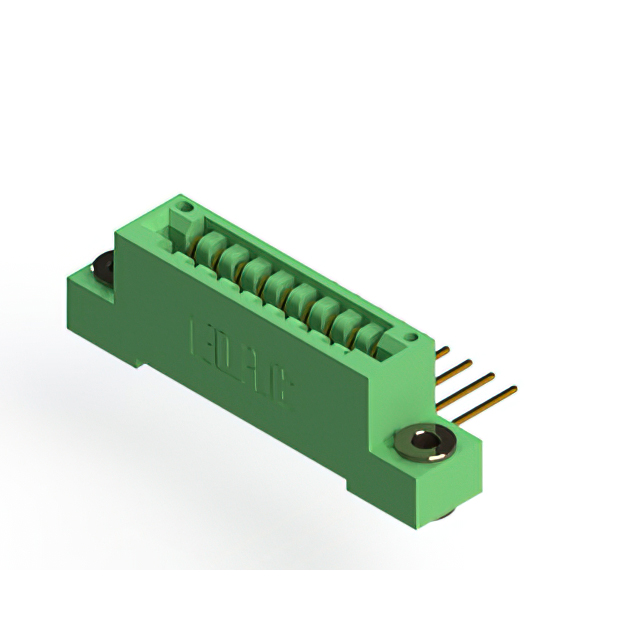

846-009-559-103
ActiveEDAC Inc.
CONN EDGE SGL FMALE 9POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
846-009-559-103
ActiveEDAC Inc.
CONN EDGE SGL FMALE 9POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 846-009-559-103 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 9 |
| Number of Positions/Bay/Row [custom] | 9 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
846-009 Series
| Part | Pitch [x] | Pitch [x] | Gender | Contact Finish | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Termination | Contact Type | Number of Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature | Number of Positions/Bay/Row [custom] | Read Out | Mounting Type | Card Type | Color | Contact Material | Number of Positions | Termination Rows | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 0.125 in | 3.18 mm | Female | Gold | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Solder | Cantilever | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 4-40 Threaded Insert Top Mount Opening | 9 | Single | Through Hole | Non Specified - Single Edge | Green | Copper Alloy | 9 | 1 | ||
EDAC Inc. | 0.125 in | 3.18 mm | Female | Gold | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Solder | Cantilever | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Flush Mount M3 Threaded Insert Top Opening | 9 | Single | Through Hole Right Angle | Non Specified - Single Edge | Green | Copper Alloy | 9 | 1 | ||
EDAC Inc. | 0.125 in | 3.18 mm | Female | Gold | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Solder | Cantilever | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Floating Bobbin Top Mount Opening | 9 | Single | Through Hole | Non Specified - Single Edge | Green | Copper Alloy | 9 | 1 | 2.95 mm | 0.116 in |
EDAC Inc. | 0.125 in | 3.18 mm | Female | Gold | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Solder | Cantilever | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 4-40 Flush Mount Threaded Insert Top Opening | 9 | Single | Through Hole | Non Specified - Single Edge | Green | Copper Alloy | 9 | 1 | ||
EDAC Inc. | 0.125 in | 3.18 mm | Female | Gold | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Wire Wrap | Cantilever | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 9 | Single | Through Hole | Non Specified - Single Edge | Green | Copper Alloy | 9 | 1 | |||
EDAC Inc. | 0.125 in | 3.18 mm | Female | Gold | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Solder | Cantilever | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 4-40 Threaded Insert Top Mount Opening | 9 | Single | Through Hole | Non Specified - Single Edge | Green | Copper Alloy | 9 | 1 | ||
EDAC Inc. | 0.125 in | 3.18 mm | Female | Gold | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Solder | Cantilever | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Floating Bobbin Flush Mount | 9 | Single | Through Hole Right Angle | Non Specified - Single Edge | Green | Copper Alloy | 9 | 1 | 2.95 mm | 0.116 in |
EDAC Inc. | 0.125 in | 3.18 mm | Female | Gold | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Solder Eyelet(s) | Cantilever | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Flush Mount Top Opening Unthreaded | 9 | Single | Through Hole | Non Specified - Single Edge | Green | Copper Alloy | 9 | 1 | 3.96 mm | 0.156 in |
EDAC Inc. | 0.125 in | 3.18 mm | Female | Gold | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Solder | Cantilever | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Flush Mount Top Opening Unthreaded | 9 | Single | Through Hole | Non Specified - Single Edge | Green | Copper Alloy | 9 | 1 | 3.25 mm | 0.128 " |
EDAC Inc. | 0.125 in | 3.18 mm | Female | Gold | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Solder | Cantilever | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Flush Mount Side Opening Unthreaded | 9 | Single | Through Hole | Non Specified - Single Edge | Green | Copper Alloy | 9 | 1 | 3.25 mm | 0.128 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 67.46 | |
Description
General part information
846-009 Series
9 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
Documents
Technical documentation and resources
