NUC980DF61YC

Active

Nuvoton Technology Corporation

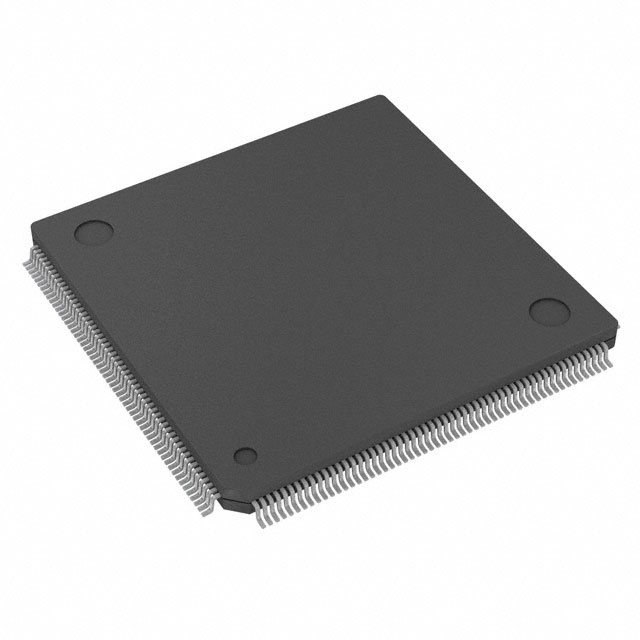

IC MPU NUMICRO 300MHZ 216LQFP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NUC980DF61YC

Active

Nuvoton Technology Corporation

IC MPU NUMICRO 300MHZ 216LQFP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NUC980DF61YC

Additional Interfaces	EBI/EMI, I2C, UART/USART, SPI, MMC/SD/SDIO
Core Processor	ARM926EJ-S
Ethernet	(2)
Ethernet [Max]	100 Mbps
Ethernet [Min]	10 Mbps
Graphics Acceleration	False
Mounting Type	Surface Mount
Number of Cores/Bus Width	32 Bit, 1 Core
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	216-LQFP
RAM Controllers	DDR
Speed	300 MHz
Supplier Device Package	216-LQFP (24x24)
USB	USB 2.0 (9)

NUC980 Series

Part	Speed	Package / Case	Number of Cores/Bus Width	Additional Interfaces	USB	Core Processor	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	RAM Controllers	Mounting Type	Ethernet [Max]	Ethernet [Min]	Ethernet
Nuvoton Technology Corporation NUC980DF61YC	300 MHz	216-LQFP	1 Core 32 Bit	EBI/EMI I2C MMC/SD/SDIO SPI UART/USART	USB 2.0 (9)	ARM926EJ-S	85 °C	-40 °C	216-LQFP (24x24)	DDR	Surface Mount	100 Mbps	10 Mbps	(2)
Nuvoton Technology Corporation NUC980DK71YC	300 MHz	128-LQFP	1 Core 32 Bit	EBI/EMI I2C MMC/SD/SDIO SPI UART/USART	USB 1.1 (6) USB 2.0 (2)	ARM926EJ-S	85 °C	-40 °C	128-LQFP (14x14)	DDR2	Surface Mount	100 Mbps	10 Mbps	(2)
Nuvoton Technology Corporation NUC980DR41Y	300 MHz	64-LQFP Exposed Pad	1 Core 32 Bit	EBI/EMI I2C MMC/SD/SDIO SPI UART/USART	USB 2.0 (2)	ARM926EJ-S	85 °C	-40 °C	64-LQFP-EP (10x10)	DDR	Surface Mount	100 Mbps	10 Mbps	(2)
Nuvoton Technology Corporation NUC980DF71Y	300 MHz	216-LQFP	1 Core 32 Bit	EBI/EMI I2C MMC/SD/SDIO SPI UART/USART	USB 2.0 (9)	ARM926EJ-S	85 °C	-40 °C	216-LQFP (24x24)	DDR	Surface Mount	100 Mbps	10 Mbps	(2)
Nuvoton Technology Corporation NUC980DK61Y	300 MHz	128-LQFP	1 Core 32 Bit	EBI/EMI I2C MMC/SD/SDIO SPI UART/USART	USB 2.0 (9)	ARM926EJ-S	85 °C	-40 °C	128-LQFP (14x14)	DDR	Surface Mount	100 Mbps	10 Mbps	(2)
Nuvoton Technology Corporation NUC980DR41YC	300 MHz	64-LQFP Exposed Pad	1 Core 32 Bit	EBI/EMI I2C MMC/SD/SDIO SPI UART/USART	USB 2.0 (2)	ARM926EJ-S	85 °C	-40 °C	64-LQFP-EP (10x10)	DDR	Surface Mount	100 Mbps	10 Mbps	(2)
Nuvoton Technology Corporation NUC980DR61Y	300 MHz	64-LQFP Exposed Pad	1 Core 32 Bit	EBI/EMI I2C MMC/SD/SDIO SPI UART/USART	USB 2.0 (2)	ARM926EJ-S	85 °C	-40 °C	64-LQFP-EP (10x10)	DDR	Surface Mount	100 Mbps	10 Mbps	(2)
Nuvoton Technology Corporation NUC980DK41Y	300 MHz	128-LQFP	1 Core 32 Bit	EBI/EMI I2C MMC/SD/SDIO SPI UART/USART	USB 2.0 (3)	ARM926EJ-S	85 °C	-40 °C	128-LQFP (14x14)	DDR	Surface Mount	100 Mbps	10 Mbps	(2)
Nuvoton Technology Corporation NUC980DR61YC	300 MHz	64-LQFP Exposed Pad	1 Core 32 Bit	EBI/EMI I2C MMC/SD/SDIO SPI UART/USART	USB 2.0 (2)	ARM926EJ-S	85 °C	-40 °C	64-LQFP-EP (10x10)	DDR	Surface Mount	100 Mbps	10 Mbps	(2)
Nuvoton Technology Corporation NUC980DF71YC	300 MHz	216-LQFP	1 Core 32 Bit	EBI/EMI I2C MMC/SD/SDIO SPI UART/USART	USB 2.0 (9)	ARM926EJ-S	85 °C	-40 °C	216-LQFP (24x24)	DDR	Surface Mount	100 Mbps	10 Mbps	(2)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 9.35
		10	$ 8.59
		40	$ 8.24
		80	$ 7.84

Description

General part information

NUC980 Series

ARM926EJ-S Microprocessor IC NuMicro NUC980 1 Core, 32-Bit 300MHz 216-LQFP (24x24)

Documents

Technical documentation and resources
