V23030A2021A104

Obsolete

TE Connectivity Potter & Brumfield Relays

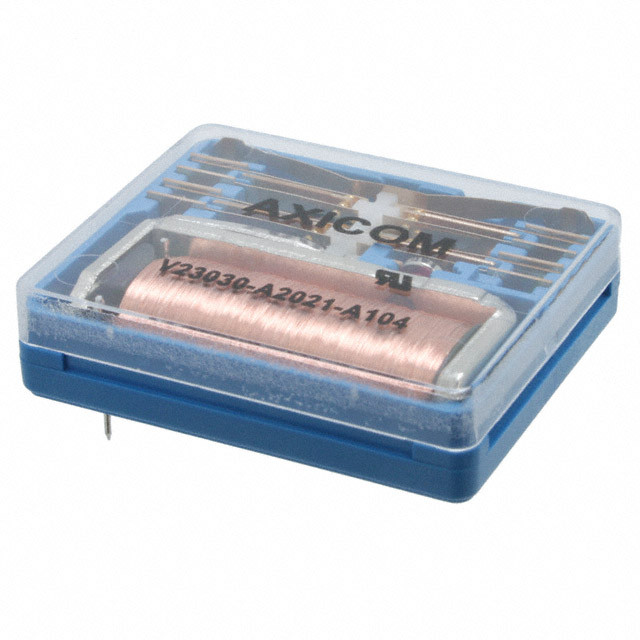

RELAY GEN PURPOSE 4PDT 2A 24V

Deep-Dive with AI

Search across all available documentation for this part.

V23030A2021A104

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE 4PDT 2A 24V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V23030A2021A104

Coil Current	32.9 mA
Coil Resistance	730 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	4PDT (4 Form C)
Contact Material	Silver (Ag), Gold (Au)
Contact Rating (Current)	2 A
Mounting Type	Through Hole
Must Operate Voltage	15.5 VDC
Operate Time	8 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	2 ms
Switching Voltage	250 VAC, 250 VDC
Termination Style	PC Pin

1393801 Series

Part	Contact Form	Relay Type	Coil Type	Operating Temperature [Min]	Operating Temperature [Max]	Must Operate Voltage	Release Time	Operate Time	Mounting Type	Coil Voltage	Termination Style	Switching Voltage	Contact Material	Contact Rating (Current)	Coil Current	Coil Resistance	Contact Form	Switching Voltage [Max]	Load - Max Switching
TE Connectivity Potter & Brumfield Relays V23030A2021A104	4PDT (4 Form C)	General Purpose	Non Latching	-40 °C	70 °C	15.5 VDC	2 ms	8 ms	Through Hole	24 VDC	PC Pin	250 VAC 250 VDC	Gold (Au) Silver (Ag)	2 A	32.9 mA	730 Ohms
TE Connectivity Potter & Brumfield Relays V23030C1014A106	6PDT	General Purpose	Non Latching	-40 °C	70 °C	45 VDC	2 ms	8 ms	Through Hole	60 VDC	PC Pin	250 VAC 250 VDC	Gold (Au) Silver (Ag)	2 A	14.6 mA	4.1 kOhms	6 Form C
TE Connectivity Potter & Brumfield Relays V23030C1026A106	6PDT	General Purpose	Non Latching	-40 °C	70 °C	37 VDC	2 ms	8 ms	Through Hole	48 VDC	PC Pin	250 VAC 250 VDC	Gold (Au) Silver (Ag)	2 A	17.8 mA	2.7 kOhms	6 Form C
TE Connectivity Potter & Brumfield Relays V23030A2012A104	4PDT (4 Form C)	General Purpose	Non Latching	-40 °C	70 °C	3.9 VDC	2 ms	8 ms	Through Hole		PC Pin	250 VAC 250 VDC	Gold (Au) Silver (Ag)	2 A	120 mA	50 Ohms
TE Connectivity Potter & Brumfield Relays V23030C2014A106	6PDT	General Purpose	Non Latching	-40 °C	70 °C	45 VDC	2 ms	8 ms	Through Hole	60 VDC	PC Pin	250 VAC 250 VDC	Gold (Au) Silver (Ag)	2 A	14.6 mA	4.1 kOhms	6 Form C
TE Connectivity Potter & Brumfield Relays V23030C1021A206	6PDT	General Purpose	Non Latching	-40 °C	70 °C	18.5 VDC	2 ms	8 ms	Through Hole	24 VDC	PC Pin		Gold (Au)	2 A	32.9 mA	730 Ohms	6 Form C	30 VDC 36 VAC	60 W 72 VA
TE Connectivity Potter & Brumfield Relays V23030C2012A106	6PDT	General Purpose	Non Latching	-40 °C	70 °C	4.6 VDC	2 ms	8 ms	Through Hole		PC Pin	250 VAC 250 VDC	Gold (Au) Silver (Ag)	2 A	120 mA	50 Ohms	6 Form C
TE Connectivity Potter & Brumfield Relays V23030A1026A104	4PDT (4 Form C)	General Purpose	Non Latching	-40 °C	70 °C	32 VDC	2 ms	8 ms	Through Hole	48 VDC	PC Pin	250 VAC 250 VDC	Gold (Au) Silver (Ag)	2 A	17.8 mA	2.7 kOhms
TE Connectivity Potter & Brumfield Relays V23030C2017A106	6PDT	General Purpose	Non Latching	-40 °C	70 °C	9.5 VDC	2 ms	8 ms	Through Hole	12 VDC	PC Pin	250 VAC 250 VDC	Gold (Au) Silver (Ag)	2 A		185 Ohms	6 Form C
TE Connectivity Potter & Brumfield Relays V23030C2021A106	6PDT	General Purpose	Non Latching	-40 °C	70 °C	18.5 VDC	2 ms	8 ms	Through Hole	24 VDC	PC Pin	250 VAC 250 VDC	Gold (Au) Silver (Ag)	2 A	32.9 mA	730 Ohms	6 Form C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

1393801 Series

General Purpose Relay 4PDT (4 Form C) Through Hole
